98 Inch 4K Digital Dual System TouchScreen Classroom Electronic Smart Nano Blackboard
>>> Our Factory Video <<<
China High Quality Interactive Smart Blackboard Suppliers, Manufacturers, Factory
The Qtenboard interactive smart blackboard is a full 98-inch electronic interactive digital blackboard designed for presentation and collaborative work in business and education.

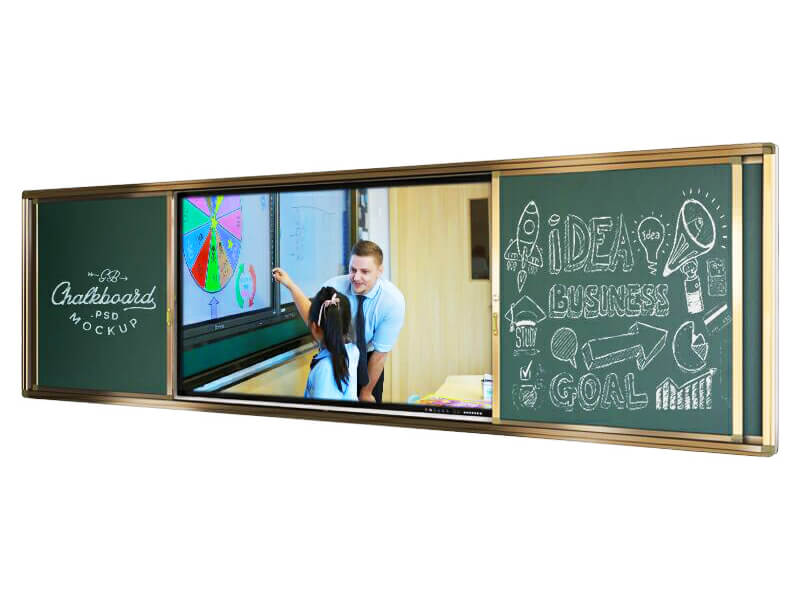

The interactive smart blackboard consists of two writing boards on the left and right and a touch panel display in the middle. The device is compatible with a range of writing instruments, including traditional chalk, dust-free chalk and various water pens. It offers the functionality of a conventional blackboard, along with a high-definition display and touch interface. This allows for the playback of educational content, including videos, images, animations and annotations, effectively combining the versatility of a digital display with the established use of blackboards in the classroom.
Interactive Smart blackboard Design Features
1. The infrared touch technology and the smooth screen provide users with the same intuitive experience they are accustomed to with their Android OS and iPhone devices. The intuitive interface allows users to navigate the digital display with ease, enabling them to perform a range of actions, including sliding, dragging, zooming in and out, and touching.
2. Infrared touch technology facilitates collaboration between students and colleagues, fostering greater engagement and interaction.
3. In addition to straightforward touch functionality, the device also facilitates seamless connectivity and data sharing. It boasts a multitude of VGA, HDMI, and USB touch ports, allowing for convenient wired connections to a range of devices.
4. The option to share content through screen-sharing software and a wireless connection dongle is also available. Easy touch connectivity enables effortless collaboration, allowing users to write digital annotations and screenshots during presentations and review them at their convenience.
Function summary and product advantage
1. LCD panel is for BOE brand and A+ grade panel
2. with Anti-glare glass on surface + zero gap bonding process
3. with split screen function + Wireless screen transmission, multi-screen interaction, Wireless projection and others functions
4. with light sensor, can adjust lcd screen brightness according to the environment, to fit different place use and protect eyes, and also can save power.
V100-A version 98 inch Smart Blackboard Description
LCD Specifications | |
LCD size | 98" |
Resolution | 3840*2160 4K resolution |
Brightness | 500cd/m² (typ.) |
Contrast Ratio | 4000:1 (typ.) |
Aspect Ratio | 16: 9 |
Color Depth | 16.7M(8bit) |
Response time | 6ms (typ.) |
Viewing area | 2160.8mm(H)×1216.3mm(V) |
Visual Angle | 178°(H) / 178°(V) |
LCD life | 60,000 hrs (typ.) |
Android Specifications | |
CPU | Goke V100, Octa-core A55 @ 1.5GHz |
GPU | Mail-G52*4 |
Android OS | Android 14.0 |
RAM+ROM | 4+32G/8+64G/8+128G (Optional) |
WIFI | 2.4g&5g a/b/g/n +ac |
Bluetooth | 5.0 |
RJ45 | 100M |
Video format | MPEG2-4,H.264,H.265, TS and ect |
Picture format | JPG, JPEG, BMP, PNG and ect |
Child lock | support |
Wireless projection | support |
Remarks function | support all channel remarks |
OSD language | English/French/Spanish/Russian and ect |
Interface (standard specs interface) | |
HDMI OUT | *1 |
TF CARD | *1 |
HDMI IN | *2 |
LAN IN | *1 |
LAN OUT | *1 |
VGA | *1 |
PC AUDIO IN | *1 |
MIC IN | *1 |
DP | *1 |
LINE OUT | *1 |
RS232 | *1 |
USB 2.0 | *1 |
TOUCH OUT (usb 2.0) | *1 |
USB 3.0 | *1 |
2.1 Channel | *1 |
Front side interface | |
TYPE C ( USB 2.0) | *1 |
HDMI IN | *1 |
TOUCH OUT (usb 2.0) | *1 |
USB 3.0 | *2 |
Touch screen Specs | |
Touch type | Infrared touch + zero gap bonding |
Touch point | 40 point |
Touch height | 1mm |
Camera | |
Built in camera and 8 Array Mic | Optional |
Interactive Smart blackboard Application Scenario
A smart interactive blackboard can be used in a classroom. A teacher uses a smart interactive blackboard to teach maths to a group of students. The blackboard is connected to the internet and has a touch screen, so the teacher can interact with the digital content. The teacher opens a maths app on the blackboard, which provides maths resources. The blackboard shows a virtual whiteboard where the teacher can write and draw. As the teacher introduces a new concept, they show students step-by-step instructions on the blackboard. Students can follow along and ask questions. The teacher can pause the video to explain more. All notes and annotations are saved and can be shared. The teacher then does an activity on the blackboard. They split the class into groups and give each group a problem to solve. The students work on the blackboard together using smart tools. They can move objects, write equations and change graphs. The blackboard shows what the students are doing. This encourages students to work together and take part. The teacher can walk around the classroom, helping students when needed. Once students have finished, the teacher can review each group's solution on the blackboard. They can talk about what is good and what could be improved, and help students understand more.
V100-A Version 98 inch Smart Blackboard Technical specification
LCD brightness ajust according to environment | |
Size | 98 inch |
Light sensor | support |
Power | |
Speaker | 16W*2 |
Standby power | ≤0.5W |
Power supply | AC100V-240V,50-60 Hz |
Power consuption (not include OPS) | ≤200W |
Working environment | |
Working tempurature | 0℃~40℃ |
Working humidity | 20%~85%(no condensation) |
Storage tempurature | -10℃~60℃ |
Storage humidity | 10%~60%(no condensation) |
Case materials | |
Case materials | Aluminium frame + tempering glass + metal cover |
Case color | Black |
Size (W*D*H) | |
Unit size (W*D*H) | 2210.94(L)*118.30(W)*1316.16(H)mm |
Packing size (W*D*H) | 2320(L)*230(W)*1440(H)mm |
VESA Hole | 400*800mm, 4*M8 screw |
Weight | |
Net Weight | 100±1.5 Kg |
Gross Weight | 134±1.5kg |
Standard accessories | |
Remote control | *1 |
1.5m Power cable | *1 |
Touch pen | *1 |
Wall mount bracket | *1 |
Antenna | *2 |
Optional accessories | |
Movable stand | Different models (Optional) |
Smart Pen | Qty optional |
Wireless projector | Qty optional |
Teacher's pointer | Qty optional |
HDMI cable | 3m/5m/10m (Optional) |
USB cable | 3m/5m/10m (Optional) |
Optional functions | |
Motion Sensors | Detects someone approaching and automatically wakes up |
NFC | Turn on/turn off |
Lock screen/unlock screen | |
Air quality detection | Issue prompts and early warnings when safe concentrations are exceeded |
Touch pen bring detection | Quickly open the entrance to the whiteboard and comments |
Fingerprint | Turn on/turn off |
Subwoofer | 20W |
Teaching whiteboard software | 1.0 Smartboard / 2.0 Qboard (Optional) |
DMS | Yes/No (Optional) |
AI | Yes/No (Optional) |
Why Choose Qunmao Display?

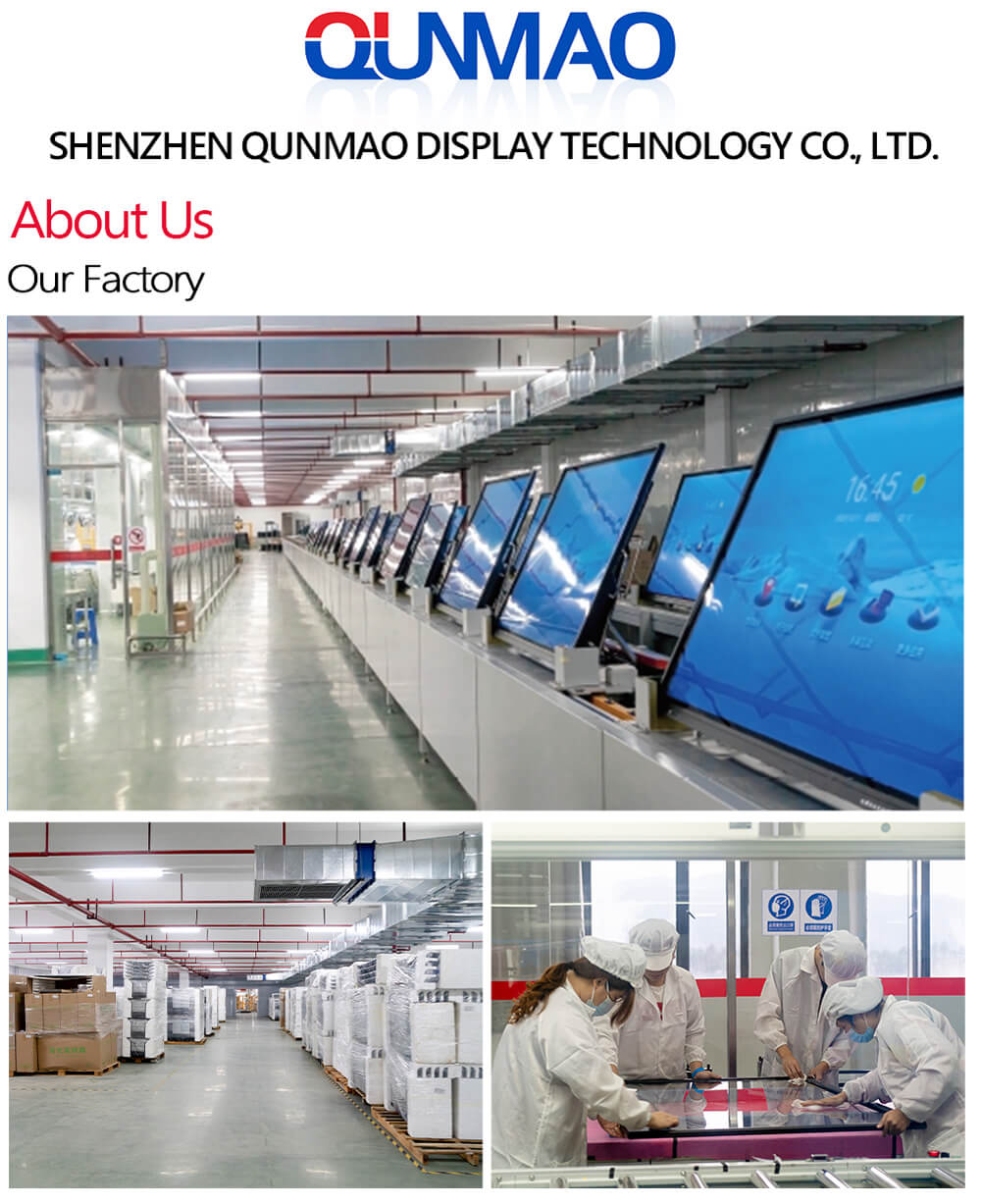

Qunmao Display Technology Co., Ltd. was established in 2009 with a production base in Shenzhen, covering an area of 230000 square meters. The company focuses on high-tech technology enterprises specializing in the production, sales, software development, and service of LCD and central control equipment. It is a high-tech enterprise integrating intelligence, specialization, and Internet + of domestic and foreign video products, and the overall solution of domestic and foreign leading products. Solution OEM & ODM provider. Our product more than 85% export and has been receiving high reputation from customers over 50 countries and regions, such as: India, Morocco,Russia, Indonesia,USA, South Africa, Southeast Asia,pakistan, etc.
