86 inch School Multi functional Recordable interactive whiteboard Smart Digital Writing Blackboard
>>> Our Factory Video <<<
China High Quality Interactive Smart Blackboard Suppliers, Manufacturers, Factory

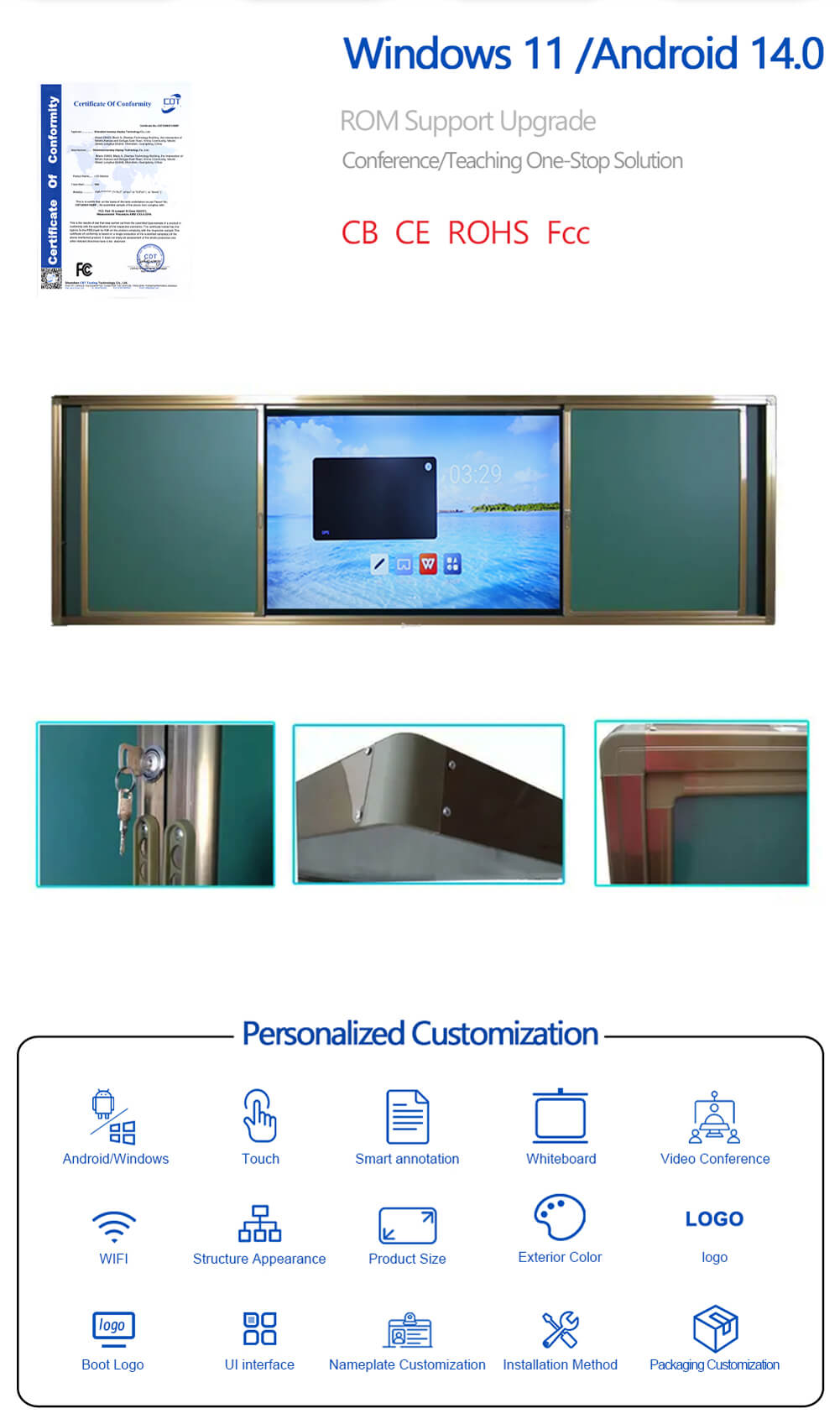

The Qtenboard interactive smart blackboard is a full 86-inch electronic interactive digital blackboard designed for presentation and collaborative work in business and education.
The interactive smart blackboard consists of two writing boards on the left and right and a touch panel display in the middle. The device is compatible with a range of writing instruments, including traditional chalk, dust-free chalk and various water pens. It offers the functionality of a conventional blackboard, along with a high-definition display and touch interface. This allows for the playback of educational content, including videos, images, animations and annotations, effectively combining the versatility of a digital display with the established use of blackboards in the classroom.
Interactive Smart blackboard Design Features

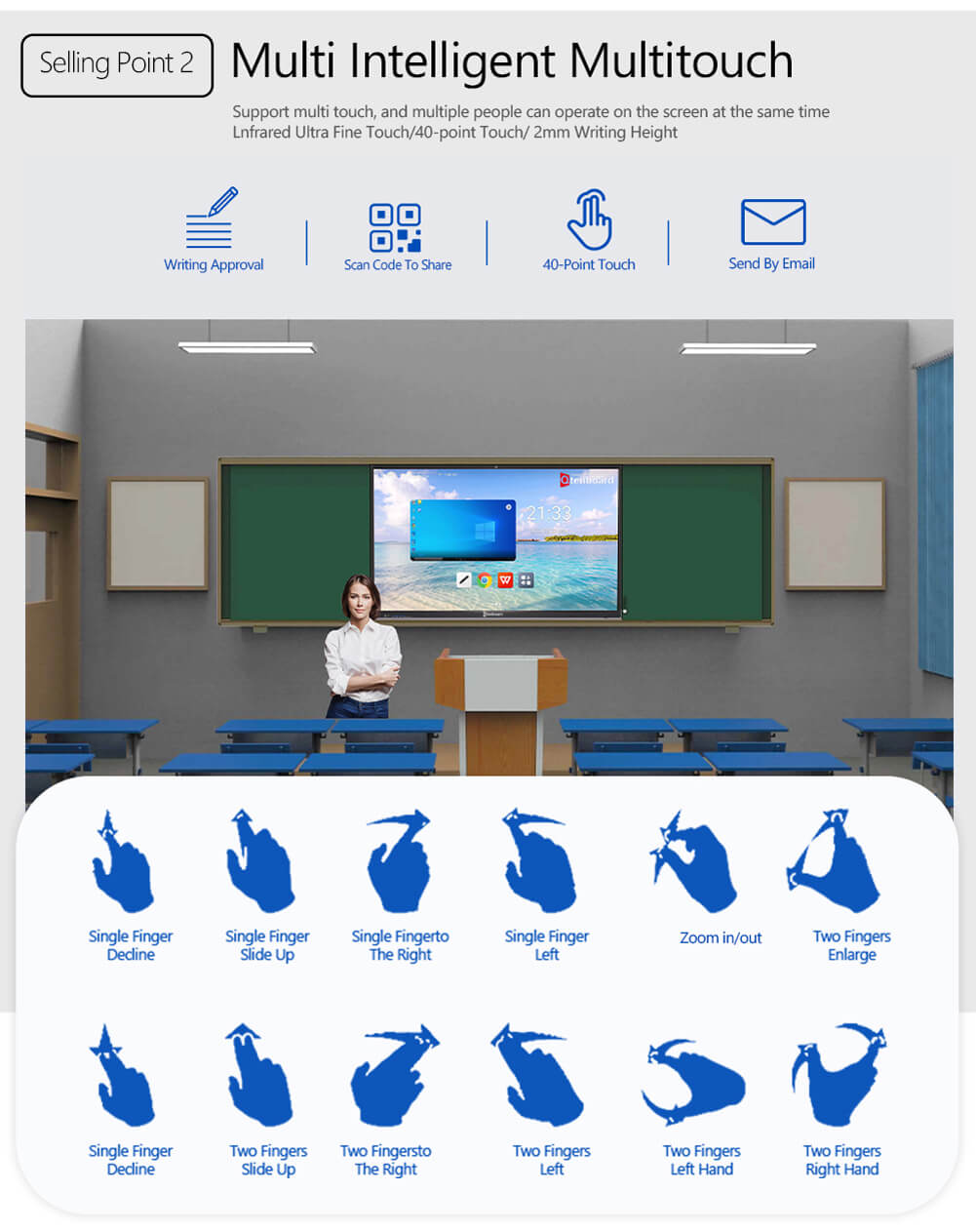

1. The infrared touch technology and the smooth screen provide users with the same intuitive experience they are accustomed to with their Android OS and iPhone devices. The intuitive interface allows users to navigate the digital display with ease, enabling them to perform a range of actions, including sliding, dragging, zooming in and out, and touching.
2. Infrared touch technology facilitates collaboration between students and colleagues, fostering greater engagement and interaction.
3. In addition to straightforward touch functionality, the device also facilitates seamless connectivity and data sharing. It boasts a multitude of VGA, HDMI, and USB touch ports, allowing for convenient wired connections to a range of devices.

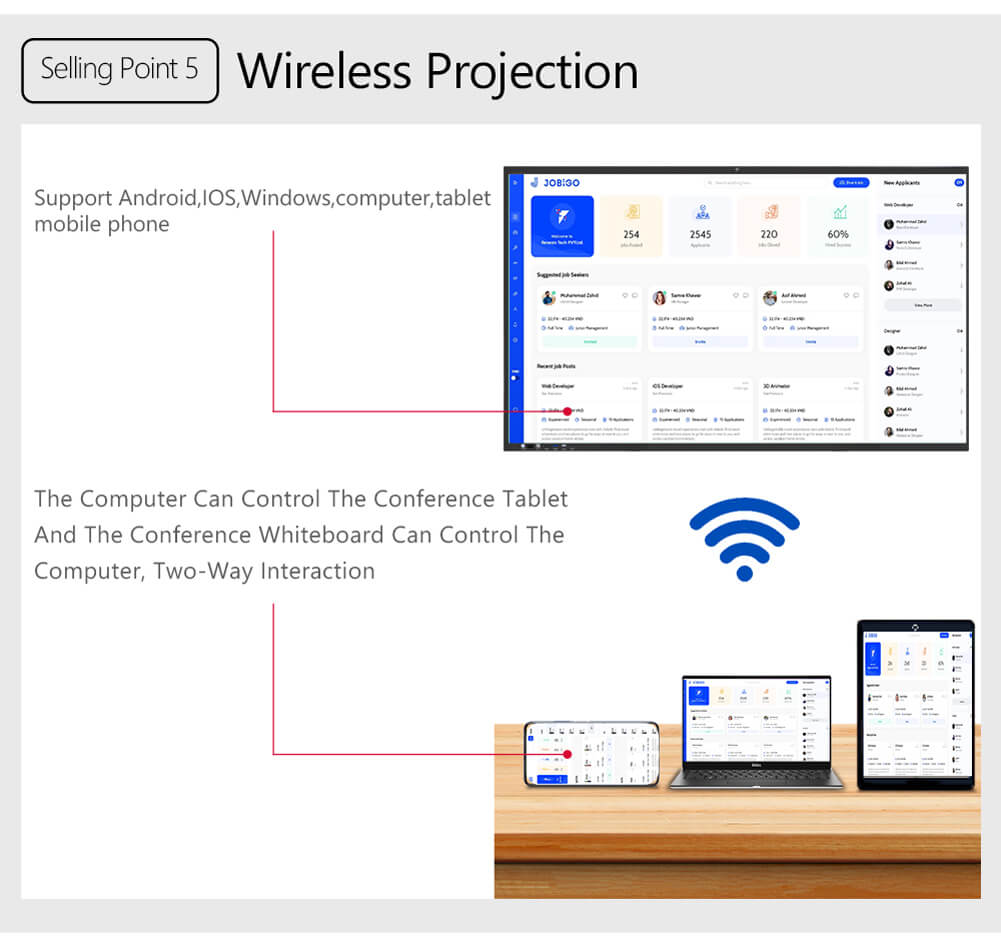

4. The option to share content through screen-sharing software and a wireless connection dongle is also available. Easy touch connectivity enables effortless collaboration, allowing users to write digital annotations and screenshots during presentations and review them at their convenience.

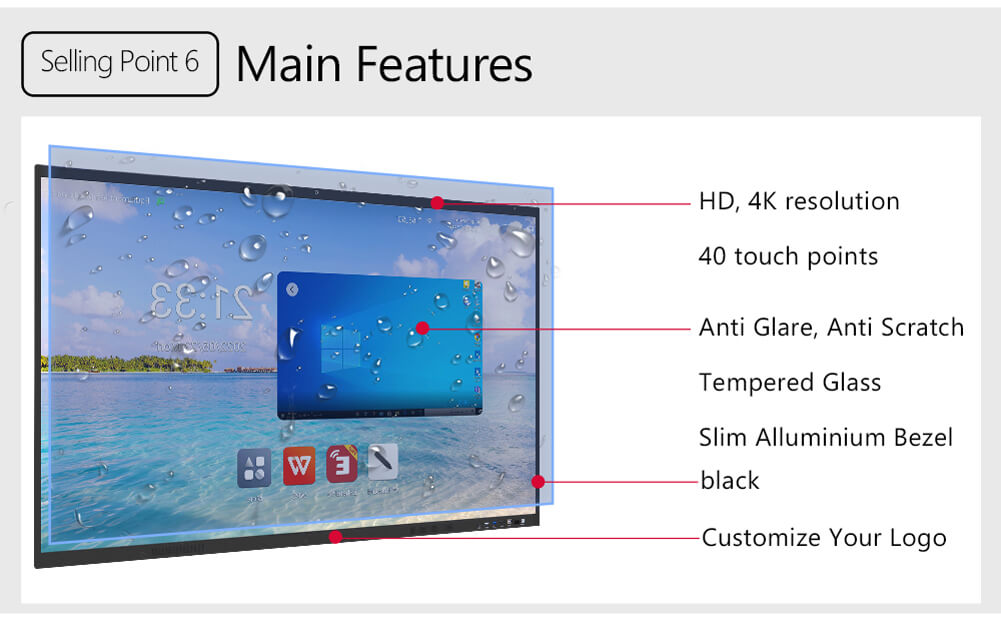

Function summary and product advantage
1. LCD panel is for BOE brand and A+ grade panel
2. with Anti-glare glass on surface + zero gap bonding process
3. with split screen function + Wireless screen transmission, multi-screen interaction, Wireless projection and others functions
4. with light sensor, can adjust lcd screen brightness according to the environment, to fit different place use and protect eyes, and also can save power.
V100-A version 86 inch Smart Blackboard Description
LCD Specifications | |
LCD size | 86" |
Resolution | 3840*2160 4K resolution |
Pixel pitch | 0.4935 mm x 0.4935 mm |
Brightness | 450cd/m² (typ.) |
Contrast Ratio | 4000:1 (typ.) |
Color Depth | 16.7M(8bit) |
Response time | 6ms (typ.) |
Viewing area | 1895.04mm(H)×1065.96mm(V) |
Visual Angle | 178°(H) / 178°(V) |
LCD life | 60,000 hrs (typ.) |

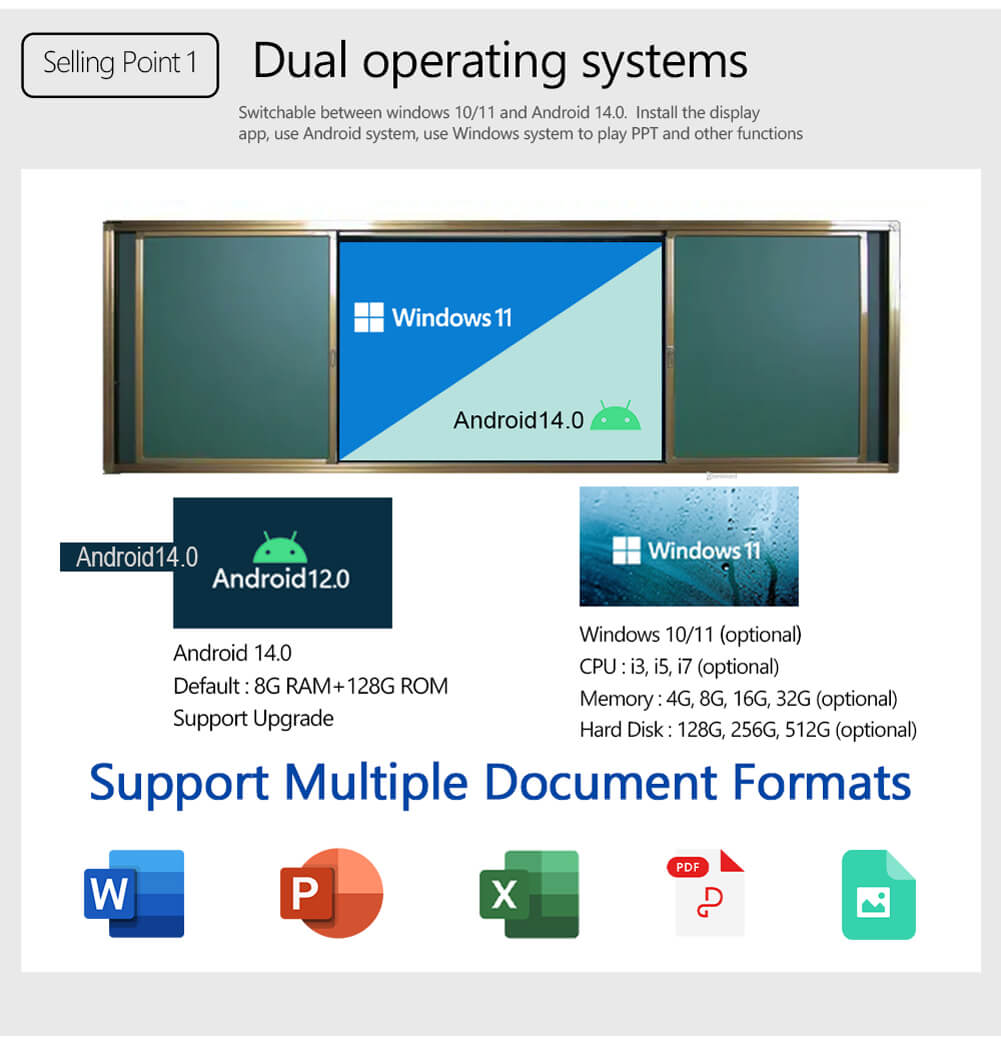

Android Specifications | |
CPU | Goke V100, Octa-core A55 @ 1.5GHz |
GPU | Mail-G52*4 |
Android OS | Android 14.0 |
RAM+ROM | 4+32G/8+64G/8+128G (Optional) |
WIFI | 2.4g&5g a/b/g/n +ac |
Bluetooth | 5.0 |
RJ45 | 100M |
Video format | MPEG2-4,H.264,H.265, TS and ect |
Picture format | JPG, JPEG, BMP, PNG and ect |
Child lock | support |
Wireless projection | support |
Remarks function | support all channel remarks |
OSD language | English/French/Spanish/Russian and ect |
Interface (standard specs interface) | |
HDMI OUT | *1 |
TF CARD | *1 |
HDMI IN | *2 |
LAN IN | *1 |
LAN OUT | *1 |
VGA | *1 |
PC AUDIO IN | *1 |
MIC IN | *1 |
DP | *1 |
LINE OUT | *1 |
RS232 | *1 |
USB 2.0 | *1 |
TOUCH OUT (usb 2.0) | *1 |
USB 3.0 | *1 |
2.1 Channel | *1 |

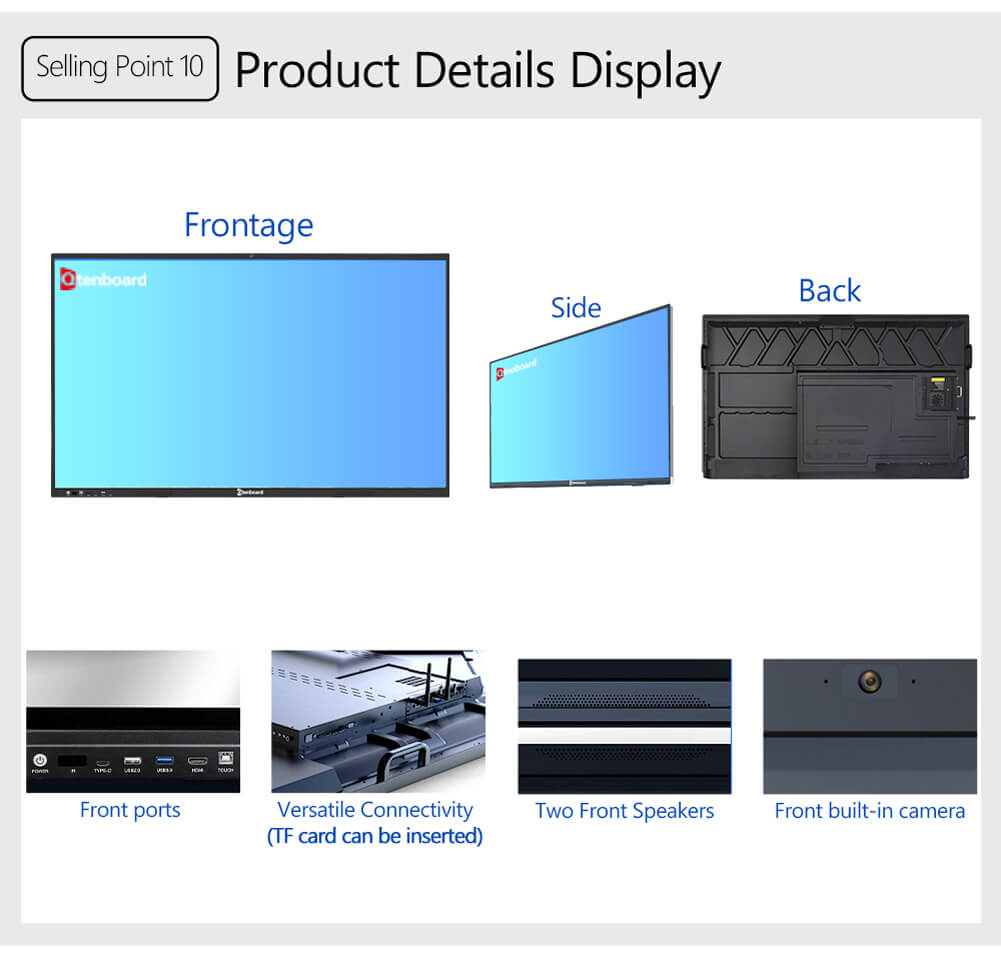

Front side interface | |
TYPE C ( USB 2.0) | *1 |
HDMI IN | *1 |
TOUCH OUT (usb 2.0) | *1 |
USB 3.0 | *2 |
Touch screen Specs | |
Touch type | Infrared touch + zero gap bonding |
Touch point | 40 point |
Touch height | 1mm |
Camera | |
Built in camera and 8 Array Mic | Optional |

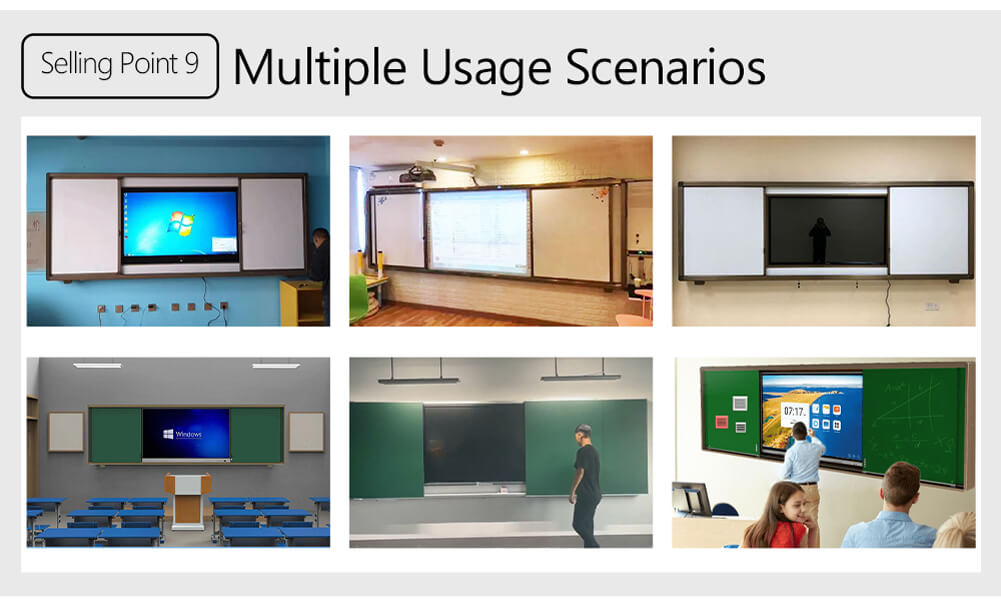

Interactive Smart blackboard Application Scenario

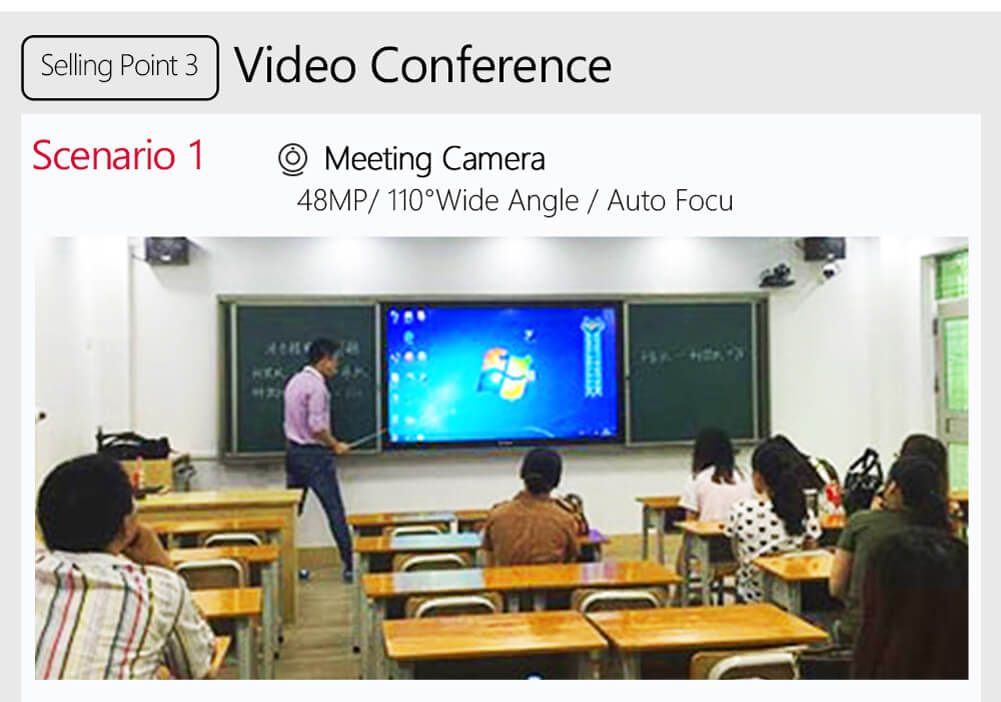

A smart interactive blackboard can be used in a classroom. A teacher uses a smart interactive blackboard to teach maths to a group of students. The blackboard is connected to the internet and has a touch screen, so the teacher can interact with the digital content. The teacher opens a maths app on the blackboard, which provides maths resources. The blackboard shows a virtual whiteboard where the teacher can write and draw. As the teacher introduces a new concept, they show students step-by-step instructions on the blackboard. Students can follow along and ask questions. The teacher can pause the video to explain more. All notes and annotations are saved and can be shared. The teacher then does an activity on the blackboard. They split the class into groups and give each group a problem to solve. The students work on the blackboard together using smart tools. They can move objects, write equations and change graphs. The blackboard shows what the students are doing. This encourages students to work together and take part. The teacher can walk around the classroom, helping students when needed. Once students have finished, the teacher can review each group's solution on the blackboard. They can talk about what is good and what could be improved, and help students understand more.
V100-A Version 86 inch Smart Blackboard Technical specification
LCD brightness ajust according to environment | |
Size | 86 inch |
Light sensor | support |
Power | |
Speaker | 16W*2 |
Standby power | ≤0.5W |
Power supply | AC100V-240V,50-60 Hz |
Power consuption (not include OPS) | ≤410W |
Working environment | |
Working tempurature | 0℃~40℃ |
Working humidity | 20%~85%(no condensation) |
Storage tempurature | -10℃~60℃ |
Storage humidity | 10%~60%(no condensation) |
Case materials | |
Case materials | Aluminium frame + tempering glass + metal cover |
Case color | Black |
Size (W*D*H) | |
Unit size (W*D*H) | 1953.4(L)*96.5(W)*1166.6(H)mm |
Packing size (W*D*H) | 2060(L)*205(W)*1331(H)mm |
VESA Hole | 400*800mm, 4*M8 screw |
Weight | |
Net Weight | 63 ±1.5 Kg |
Gross Weight | 74.5±1.5 Kg |
Standard accessories | |
Remote control | *1 |
1.5m Power cable | *1 |
Touch pen | *1 |
Wall mount bracket | *1 |
Antenna | *2 |
Optional accessories | |
Movable stand | Different models (Optional) |
Smart Pen | Qty optional |
Wireless projector | Qty optional |
Teacher's pointer | Qty optional |
HDMI cable | 3m/5m/10m (Optional) |
USB cable | 3m/5m/10m (Optional) |
Optional functions | |
Motion Sensors | Detects someone approaching and automatically wakes up |
NFC | Turn on/turn off |
Lock screen/unlock screen | |
Air quality detection | Issue prompts and early warnings when safe concentrations are exceeded |
Touch pen bring detection | Quickly open the entrance to the whiteboard and comments |
Fingerprint | Turn on/turn off |
Subwoofer | 20W |
Teaching whiteboard software | 1.0 Smartboard / 2.0 Qboard (Optional) |
DMS | Yes/No (Optional) |
Why Choose Qunmao Display?

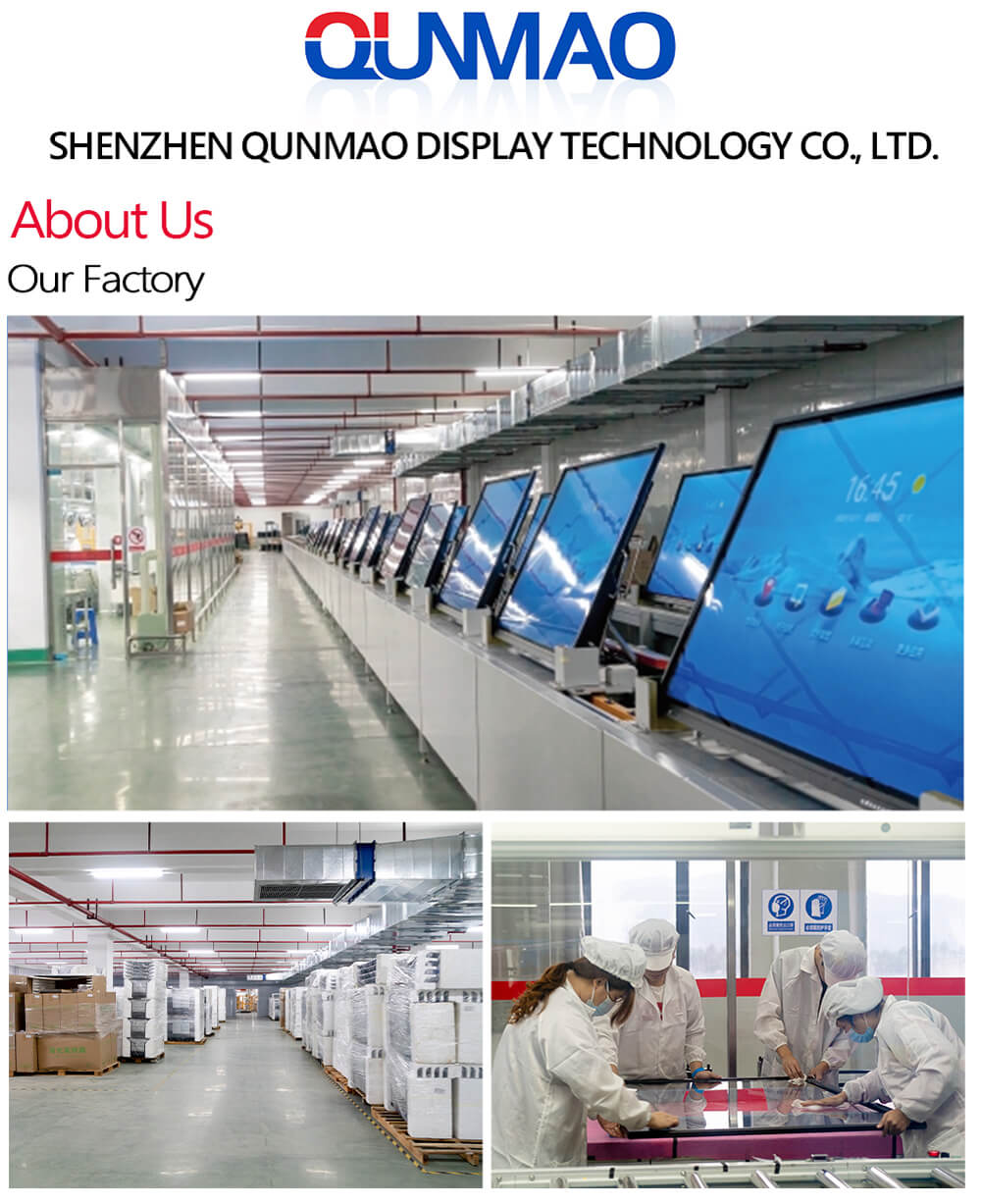

Qunmao Display Technology Co., Ltd. was established in 2009 with a production base in Shenzhen, covering an area of 230000 square meters. The company focuses on high-tech technology enterprises specializing in the production, sales, software development, and service of LCD and central control equipment. It is a high-tech enterprise integrating intelligence, specialization, and Internet + of domestic and foreign video products, and the overall solution of domestic and foreign leading products. Solution OEM & ODM provider. Our product more than 85% export and has been receiving high reputation from customers over 50 countries and regions, such as: India, Morocco,Russia, Indonesia,USA, South Africa, Southeast Asia,pakistan, etc.

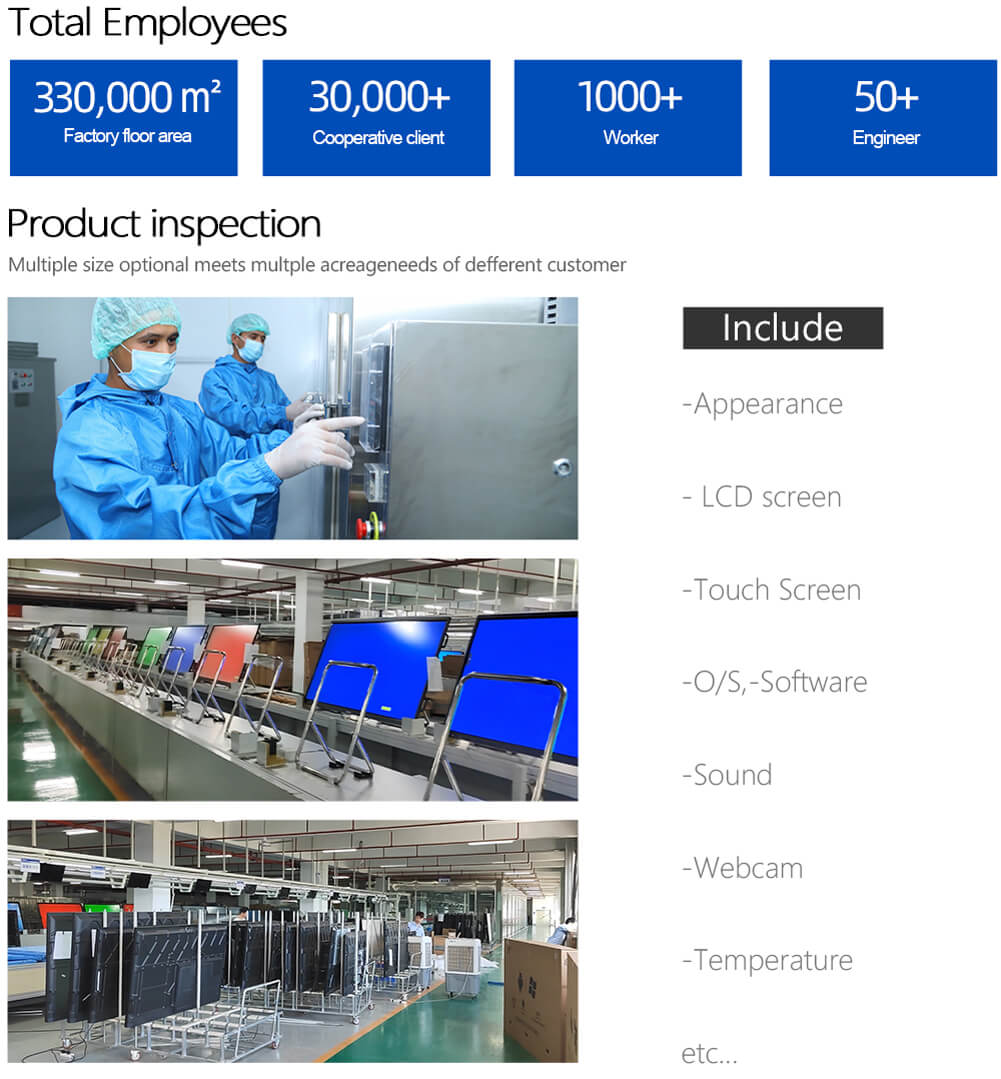

Qunmao manufacturing factory Main prdocuts include :Interactive whiteboard,interactive flat panel,splicing screens, LCD video wall,smart advertising display, smart conference panel, educational tablets, smart blackboards, Digital signage,preschool education machines, smart terminals,queue machine,etc. A high-end technology enterprise with products, it is a master in the field of high-end displays
Certifications & Exhibitions
Qunmao Manufacturer Popular Products Showcase
Advertising Player
All-in-One Interactive whiteboard
Splicing screen LCD video wall
Advantages of interactive smart blackboard?
1. Increased engagement: Interactive smart blackboards make learning more interactive and engaging for students. This can help improve student motivation and enthusiasm for learning.
2. Improved learning outcomes: The interactive nature of smart blackboards allows for a more hands-on and dynamic learning experience. This can help improve learning outcomes and student retention of information.
3. Enhanced collaboration: Smart blackboards allow for easy collaboration between students and teachers. Students can work together on projects and presentations, and teachers can provide instant feedback and guidance.
4. Access to multimedia resources: Smart blackboards enable teachers to use a wide range of multimedia resources in their lessons, such as videos, images, and interactive simulations. This can help make lessons more engaging and effective.
5. Personalized learning: Smart blackboards can be used to tailor lessons to individual student needs and learning styles. Teachers can adjust the pace and content of lessons to better meet the needs of each student.
6. Real-time assessment: Smart blackboards can be used for real-time assessment of student learning. Teachers can quiz students, track their progress, and provide immediate feedback on their performance.
7. Eco-friendly: Smart blackboards are more environmentally friendly than traditional chalkboards, as they eliminate the need for chalk and reduce paper waste. This can help schools reduce their environmental impact and save money on supplies.
Our Services and Advantages
1. Extensive sales and manufacturing experience
2. High-tech and efficient equipment
3. Customisation, OEM and ODM Services are acceptable
4. Strictly adheres to ISO9001 standards
5. Extensive after-sales service
6. Competitive factory price and superior quality
7. All materials meet the standards
8. Exceptional customer focus and knowledge
9. Owning a production factory with a complete supply chain
10. Quick email response within 12 hours.
Packaging And Shipping
FAQ
Q: can you provide OEM services for the integrated interactive tablet?
A: Yes, it has received good support. We can customize it according to your requirements.
Q: do you have any stock?
A: We have 3000-5000 units in stock every month.
Q: is your company a real manufacturer?
A:Our company is a professional manufacturer in Shenzhen city. You are welcome to visit our factory at any time.
Q: how about the quality of the product?
A: our products have been strictly tested by QC before being delivered to customers. We sell our brand online in China's domestic market, so quality is our first priority!
Q: is this product only used in schools?
A:Our products are widely used in hospitals, schools, offices and so on.
Q: can you provide OEM services for the integrated interactive tablet?
A: Yes, it has received good support. We can customize it according to your requirements.
Q: do you have any stock?
A: We have 3000-5000 units in stock every month.
Q: is your company a real manufacturer?
A: Our company is a professional manufacturer in Shenzhen city. You are welcome to visit our factory at any time.
Q: how about the quality of the product?
A: our products have been strictly tested by QC before being delivered to customers. We sell our brand online in China's domestic market, so quality is our first priority!
Q: is this product only used in schools?
A:Our products are widely used in hospitals, schools, offices and so on.
Q: how can I trust the quality of your products?
A: We have been engaged in the business display industry for more than ten years, have independent product R & D
institutions, have strong independent R & D ability of new products, and have passed a series of domestic and international quality management system certification, 3C certification, energy saving certificate, test report, national high-tech enterprise certificate, CNAs quality certification, CE certificate, FCC certificate, ROHS certificate, biso9001 certification, ISO environmental management The product implementation standard certificate is also the designated brand in the domestic government procurement list. The market share has doubled for several consecutive years. The company has a number of invention patents, utility model patents, design patents, intellectual property rights, copyrights, etc.
Q: what is your after-sales service?
A: If you have any questions, you will get our reply within 24 hours. And provide solutions immediately.
