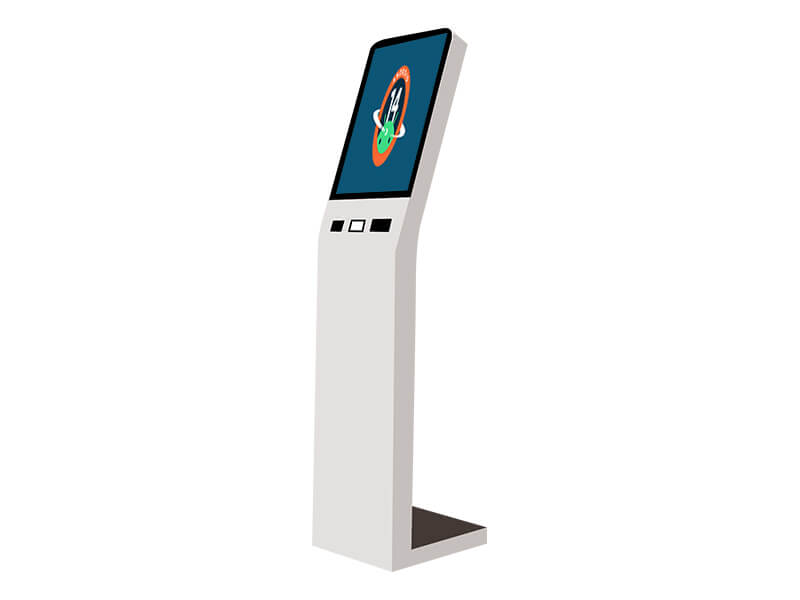

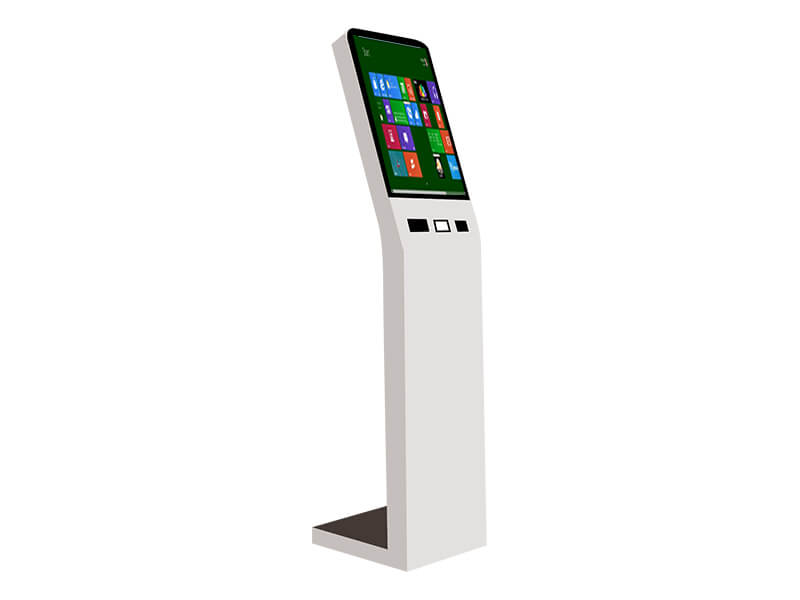

17" 19" 21.5" 23.6" 32" Capacitive touch Screen self service Kiosk for government queue management system hotel check in kiosk
>>> Our Factory Video <<<
Queue Machine System Kiosk
Screen size:17/19/21.5/23.6/32 inch
Queue Machine System Kiosk Product Description
1.Appearance:All in one frame,super thin and beauty,install easily and maintain conveniently
2.UHD：The use of IPS HD LCD panel, gorgeous color, high brightness, support 1080P video, image decoding and playback, to achieve high-quality picture output display.
3.Adopt high-channel capacitance G+G touch solution, smooth writing, precise touch and strong anti-interference.
4.Intelligent:Equipped with intelligent Windows operating system, third-party client software can be installed.
5.Scenarios：Widely used in government, education, finance, transportation, hotels, supermarkets, exhibition halls, medical, catering, enterprises and other industries.
Queue Machine System Kiosk Technical parameters
| Display parameter | |||
| Product size | 17inch | 19inch | 21.5inch |
| Model | QM-PT17 | QM-PT19 | QM-PT22 |
| Aspect ratio | 4:03 | 4:03 | 16:09 |
| Resolution | 1280×1024 | 1280×1024 | 1920×1080 |
| Display area | 337.92×270 mm | 377×302mm | 476.64×268.11mm |
| Response time | 5ms | 8ms | 5ms |
| Pixel spacing | 0.264×0.264mm | 0.294×0.294mm | 0.24825×0.24825mm |
| Contrast ratio | 1500:01:00 | ||
| Brightness | 250cd/m2 | ||
| Display color | 16.7M | ||
| Panel type | TFT-LCD | ||
| Light source type | WLED | ||
| Viewing Angle | 178°(H) / 178°(V) | ||
| Service life | 30K(h) | ||
| System configuration | |||
| Operation system | Windows10/11 | ||
| Version | Intel i5/i7 | ||
| RAM | 4G/8G/16G | ||
| SSD | 128G/256G/512G | ||
| Interface type | DC*1 USB*4 RJ45*1 Audio*1 VGA*1 HDMI*1 | ||
| Printer Features | |||
| Brand | EPSON | ||
| Printing method | thermal line printing | ||
| Feed paper method | Straight in and straight out | ||
| Printing speed | 150MM/S | ||
| Resolution | 230dpi | ||
| Paper width | 79±0.5MM | ||
| Straight diameter | 120MM | ||
| Thickness | 0.06~0.15MM | ||
| Supply voltage | 12V DC | ||
| Power consumption | 2.0A | ||
| Reliability | 370000000000 rows | ||
| Print head | 150000000000 rows | ||
| Automatic cutter | 1 million cuts | ||
Queue Machine System Kiosk Technical parameters
| Touch parameters | |||
| Technology | Capacitive touch | ||
| touch scheme | G+G | ||
| Touch point | 20 points | ||
| Touch mode | Finger or touch pen | ||
| Touch accuracy | ≦2mm | ||
| Service life | 60 Million touch | ||
| Drive mode | drive-free | ||
| Support operating system | Windows7/10/11 | ||
| Complete machine characteristic | |||
| Operating temperature | -10℃—45℃ | ||
| Operating humidity | <80% | ||
| Storage temperature | -20℃—55℃ | ||
| Relative humidity | <90% | ||
| Input voltage | AC220V±10% 50HZ | ||
| Power loss | 65W/standby0.5W | 70W/standby0.5W | 80W/standby0.5W |
| Second generation ID card reader (optional) | |||
| Brand | Made in China | ||
| Complies with the 'GA450-2013 General Technical Requirements for Desktop Resident Identity Card Readers', compatible with ISO14443 TYPE A/B standards. Communication interfaces: USB/serial port (supports TTL, 232 communication methods)." | |||
| Reading distance | 0-30mm read card response speed: <1S Working frequency: 13.56MHZ Power specifications: USB-powered DC5V | ||
| Social security card reader (optional) | |||
| ATMEL:AT24C01A/02/04/08/16/64 SIEMENS:SLE4442/5542,SLE4428/5528 | |||
| Supports chip card type | CPU card :Complies with ISO7816 T=0、T=1 agreement. | ||
| Agreement | Comply with ISO7816 standard | ||
| Device password | Must pass password verification after each boot to use | ||
| Safe card | With 1 GSM11.11 standard SAM card holder | ||
| Communication mode | USB | ||
| Communication rate | 9600-115200bps | ||
| Power | DC5V± 10% | ||
| Operation temperature | -20℃～60℃ | ||
| Operating humidity | 10%~90% | ||
| Developer kit | Including interface dynamic libraries, routines, user manuals and demonstration software, operation instructions | ||
| ATMEL:AT24C01A/02/04/08/16/64 SIEMENS:SLE4442/5542,SLE4428/5528 | |||
| Supports chip card type | CPU card:complies withISO7816 T=0、T=1 agreement. | ||
Why Choose Qunmao Display?
Qunmao Display Technology Co., Ltd. was established in 2009 with a production base in Shenzhen, covering an area of 230000 square meters. The company focuses on high-tech technology enterprises specializing in the production, sales, software development, and service of LCD and central control equipment. It is a high-tech enterprise integrating intelligence, specialization, and Internet + of domestic and foreign video products, and the overall solution of domestic and foreign leading products. Solution OEM & ODM provider. Our product more than 85% export and has been receiving high reputation from customers over 50 countries and regions, such as: India, Morocco,Russia, Indonesia,USA, South Africa, Southeast Asia,pakistan, etc.
Qunmao manufacturing factory Main prdocuts include :Interactive whiteboard,interactive flat panel,splicing screens, LCD video wall,smart advertising display, smart conference panel, educational tablets, smart blackboards, Digital signage,preschool education machines, smart terminals,queue machine,etc. A high-end technology enterprise with products, it is a master in the field of high-end displays.
Certifications & Exhibitions
Our Services and Advantages
1. Extensive sales and manufacturing experience
2. High-tech and efficient equipment
3. Customisation, OEM and ODM Services are acceptable
4. Strictly adheres to ISO9001 standards
5. Extensive after-sales service
6. Competitive factory price and superior quality
7. All materials meet the standards
8. Exceptional customer focus and knowledge
9. Owning a production factory with a complete supply chain
10. Quick email response within 12 hours.
Packaging And Shipping
FAQ
Q: can you provide OEM/ODM services?
A: Yes, it has received good support. We can customize it according to your requirements.
Q: do you have any stock?
A: We have 3000-5000 units in stock every month.
Q: is your company a real manufacturer?
A:Our company is a professional manufacturer in Shenzhen city. You are welcome to visit our factory at any time.
Q: how about the quality of the product?
A: our products have been strictly tested by QC before being delivered to customers. We sell our brand online in China's domestic market, so quality is our first priority!
Q: What is your delivery time??
A:Our factory has an inventory of raw materials and has 10 Automated production lines. Sample orders can be shipped out at any time, and bulk orders are delivered in about one to two week.
Q: What brand of screen are you using?
A: LG,BOE,AUO,TCL, Samsung, CHIMEIpanels would be used, depending on the projects. And we can guarantee that we use all original A+ screens from original brands.
Q: How does your factory do regarding quality control?
A: Quality is priority. Qunmao always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail, our products accept CE,RoHS,FCC authentication,etc.
Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is calculated according to Specs/Size/Quantity of each of your order, it is negotiable for large quantity.
Q: how can I trust the quality of your products?
A: We have been engaged in the business display industry for more than ten years, have independent product R & D institutions, have strong independent R & D ability of new products, and have passed a series of domestic and international quality management system certification, 3C certification, energy saving certificate, test report, national high-tech enterprise certificate, CNAs quality certification, CE certificate, FCC certificate, ROHS certificate, biso9001 certification, ISO environmental management The product implementation standard certificate is also the designated brand in the domestic government procurement list. The market share has doubled for several consecutive years. The company has a number of invention patents, utility model patents, design patents, intellectual property rights, copyrights, etc.
Q: what is your after-sales service?
A: If you have any questions, you will get our reply within 24 hours. And provide solutions immediately.
Can we help you?
7*24 hours online service.
Your inquiry related to our products or prices will be replied in 24 hours.
If you want to know more about our products or customize products, please Contact us or Send inquiry.
