Home  >  Products  >  Wall mounted advertising player
Products

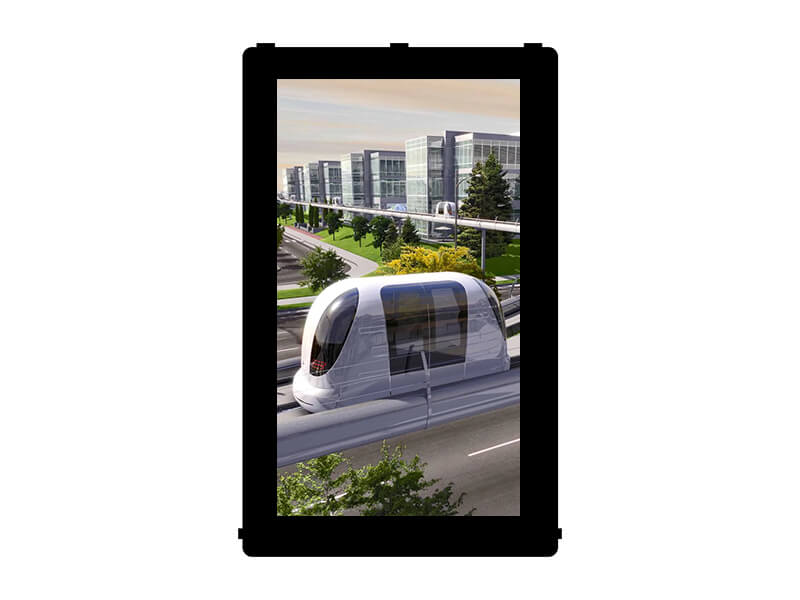

  • Outdoor Advertising display Ultra-Thin Wall Mount 65 Inch 4k UHD 2160P Menu Digital Signage Hanging LCD Ad Media Player

    Brand: QUNMAO

    Model: QM-6518HW-L

    Screen Size: 65inch

    Resolution: 1920*1080/3840*2160(Optional)

    Angle of view: 178°/178°

    Contrast ratio: 3500:01:00

    Display size: 1428(H) x 803(V)mm

    Display rate: 16:09

    Back light: LED

    Brightness: ≥2500cd/㎡

    Refresh rate: 60HZ

    Color: 16.7M(8-bit)

    Operation system: Android 13.0

Outdoor Advertising display Ultra-Thin Wall Mount 65 Inch 4k UHD 2160P Menu Digital Signage Hanging LCD Ad Media Player


China Qunmao is a leading supplier of indoor/outdoor touch screen LCD digital signage and advertising displays. We offer high-quality advertising media machines at competitive prices. As certified commercial video advertising player product manufacturers, suppliers, wholesalers and factories, we provide a comprehensive range of services to meet our clients' diverse needs.


Wall-Mounted Outdoor Digital Signage

Different Size: 13.3/18.5/21.5/23.6/27/32/43/49/55/65/75/86/98 inch Screen can support


Vertical Stand Outdoor Digital Signage

Different Size: 32/43/49/55/65/75/86 inch Screen can support


Digital signage Product Description


1.Structural design: the shell is made of 1.0-2.5mm high-quality galvanized sheet, sprayed with outdoor special powder, and the outdoor anti-corrosion is more than 7 years.

2.Waterproof design: the shell structure is designed with waterproof groove and waterproof labyrinth of air inlet and outlet holes, meeting the protection level of IP65.

3.Dustproof design: The air inlet and outlet are designed with special dust-proof filter (medium and high efficiency dust-proof filter) to filter the fine dust in the air and prevent mosquitoes from entering the device.

4.Anti riot glass: 6mm high permeability fully tempered glass is used as the protective tempered glass in front of the screen of the whole machine, with the light transmission coefficient > 95%.

5.Anti theft design: equipped with anti-theft door lock (padlock can be added, double anti-theft) to truly achieve anti-theft security. The fixing method is to fix the bottom expansion screw or embedded parts.

6.High brightness, with air cooling system, and multi split screen display mode.


What is Outdoor wall mount advertising digital signage?


Outdoor wall-mounted digital signage refers to a type of electronic display screen that is mounted on an exterior wall of a building or structure for the purpose of advertising and marketing. These digital signs are typically large in size and high-resolution, allowing for vivid and dynamic content to be displayed to passers-by and potential customers. Outdoor wall-mounted digital signage is used by businesses and organisations to promote their products, services, events, and brand messages in a visually appealing and attention-grabbing way. These signs are often equipped with features such as remote content management, weatherproof casing, and sunlight readability to ensure visibility and durability in outdoor environments.


65 inch wall-mount outdoor Digital signage Description



BrandQUNMAO
ModelQM-6518HW
Screen Size65inch
Resolution1920*1080/3840*2160(Optional)
Angle of view178°/178°
Contrast ratio3500:01:00
Display size1428(H) x803(V)mm
Display rate16:09
Back lightLED
Brightness≥2500cd/㎡
Refresh rate60HZ
Color16.7M(8-bit)
Response time6ms
Life span50000h
Smart photosensitiveThe intensity of outdoor light automatically adjusts the brightness of the LCD display screen
TechnologyCapacitive touch
Touch point20 points
Touch modeFinger or touch pen
Touch accuracy≦2mm
Service life60 Million touch
Drive modeDriver-free
Camera500MP
Operation systemAndroid
Version13
CPUT972 Quad core A55,Main frequency up to 1.9GHz
GPUMali-G31
RAM2GB
Storage memory16GB
InterfaceHDMI*1(2.1 4kx2k@60Hz input) USB*2
Audio interface3.5mm ear jack*1
Network1pc,10M/100M Adaptive Ethernet
WIFI、BTBuilt in WIFI(2.4G single-signal),BT4.2
3G/4GChoose to install
Decoding CapabilitySupports 4K video and picture decoding and playback
Software applicationSupport to install the third-party software
LanguageRussian、English etc language
Boot AnimationSupport to customize
Infrared remote controlOperate system by remote control
Audio functionSupport left/right channel output,built-in double 8Ω/15W power amplifier
Power-on/offRemote control/timing/network wake-up/self-start
System authorizationAllow root permission and customize software development
Mouse modesupport wired/wireless mouse or use keyboard



We support customized product service if you want it!

>>>Please send us an inquiry<<<


Digital signage Application



Our digital signage products are designed to reach media outlets and deliver content to large screens. They are suitable for a range of applications, including airports, financial institutions, shopping malls, supermarkets, public spaces, government buildings, hotels, offices, and advertising.


65 Inch 4k UHD 2160P Menu Digital Signage Hanging LCD Ad Media Player (12).jpg


65 inch wall-mount outdoor Digital signage Technical specifications



Screen Size65inch
System updateSupport local and remote upgrade

Audio:MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc
Play modePicture:JPG、BMP、PNG etc

Video:AVI,rm,rmvb, MKV,WMV,MOV,MP4 etc
TypingStandard Android keyboard as default,can install the third party typing
More functionsfollow instruction manual/video or contact supplier
Background supportWeb/mobile IE(local network/WAN)
Play modeNetworking/standalone
Play supportvideo、picture、subtitles、PPT、web、weather、clock etc mixture to play
Smart splicingsupport custom playing modes to splice as setting
Timing functionsupport to set playing custom program in time period
Terminal administrationAdministrator can create and modify account for level-to level
 administration
More functionfollow instruction manual/video or contact supplier
Colorblack white
Body MaterialUsing 1.2-2.5mmSGCC high-quality galvanized steel plate
Protection gradeIP65
Protective glass6mm explosion-proof glass (AG anti-glare/AR anti-ultraviolet optional)

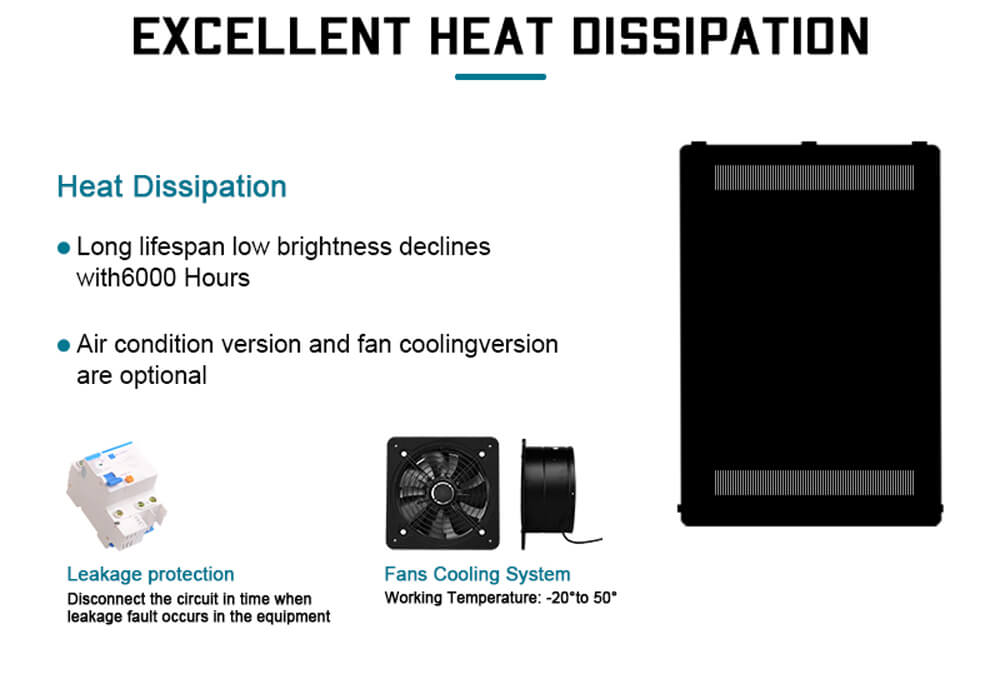

Cooling by designIntelligent direct ventilation (forced air cooling) heat dissipation system
Energy savingIntelligent temperature control cooling system automatically adjusts wind speed and volume
dust proofHigh-precision filtration system blocks 99% of dust particles
Product size1665*1070*150mm
Packing size1745*295*1150mm
BracketUniversal for horizontal/vertical hanging
Packing materialCarton
Net/gross weight115KG/117KG
Install waysmount-on wall/embedding/hang/bracket
Scenariosoutdoor
Rated VoltageAC110-220V
Rated power≦100W-450W
Suitable Environment-20℃ to +55℃ outdoor environment operation
Time switchSupport 16 groups of timed on/off, repeatable settings, timed on/off by day, week, month
Lightning protectionLevel 3
Leakage protection switchDisconnect the circuit promptly when leakage occurs


Why Choose Qunmao Display?



Qunmao Display Technology Co., Ltd. was established in 2009 with a production base in Shenzhen, covering an area of 230000 square meters. The company focuses on high-tech technology enterprises specializing in the production, sales, software development, and service of LCD and central control equipment. It is a high-tech enterprise integrating intelligence, specialization, and Internet + of domestic and foreign video products, and the overall solution of domestic and foreign leading products. Solution OEM & ODM provider. Our product more than 85% export and has been receiving high reputation from customers over 50 countries and regions, such as: India, Morocco,Russia, Indonesia,USA, South Africa, Southeast Asia,pakistan, etc.

>>> Our Factory Video <<<

Qunmao manufacturing factory Main prdocuts include :Interactive whiteboard,interactive flat panel,splicing screens lcd video wall, smart advertising display,advertising player,smart conference panel, educational tablets, smart blackboards, Digital signage,preschool education machines, interactive smartbaord,queue machine,etc. A high-end technology enterprise with products, it is a master in the field of high-end displays.


Our factory.jpg

Product equipment and testing.jpg


Certifications & Exhibitions




Our Manufacturer Popular Products Showcase



Advertising Player


advertising player.jpg


All-in-One Interactive whiteboard


All-in-One Interactive whiteboard.jpg


Splicing screen LCD video wall


Splicing screen LCD video wall.jpg



 Digital signage Functional features



1. Support horizontal and vertical screen wall hanging to meet the needs of a variety of use scenarios

2. High definition picture / video quality, no color difference, no distortion, delicate and true experience

3. Quad core processor / WiFi / wired / intelligent touch control, Android / windows dual operating system supports massive application installation and download;

4. Excellent sound system, rich stereo and environmental sound effects, very infectious, people seem to be in it;

5. It adopts dynamic color engine and intelligent motion compensation video

6. Intelligent split screen playback mode, fine adjustment can be made in each area, and video / pictures / posters can be played synchronously to bid farewell to the trouble of display selection;

7. Stand alone version / network version can be used according to the needs of the scene;


Our Services and Advantages



1. Extensive sales and manufacturing experience

2. High-tech and efficient equipment

3. Customisation, OEM and ODM Services are acceptable

4. Strictly adheres to ISO9001 standards

5. Extensive after-sales service

6. Competitive factory price and superior quality

7. All materials meet the standards

8. Exceptional customer focus and knowledge

9. Owning a production factory with a complete supply chain

10. Quick email response within 12 hours.


Packaging And Shipping



Packaging And Shipping.jpg


FAQ



Q: can you provide OEM services for the integrated interactive tablet?

A: Yes, it has received good support. We can customize it according to your requirements.


Q: do you have any stock?

A: We have 3000-5000 units in stock every month.


Q: is your company a real manufacturer?

A:Our company is a professional manufacturer in Shenzhen city. You are welcome to visit our factory at any time.


Q: how about the quality of the product?

A: our products have been strictly tested by QC before being delivered to customers. We sell our brand online in China's domestic market, so quality is our first priority!


Q: is this product only used in schools?

A:Our products are widely used in hospitals, schools, offices and so on.


Q: can you provide OEM services for the integrated interactive tablet?

A: Yes, it has received good support. We can customize it according to your requirements.


Q: do you have any stock?

A: We have 3000-5000 units in stock every month.


Q: is your company a real manufacturer?

A: Our company is a professional manufacturer in Shenzhen city. You are welcome to visit our factory at any time.


Q: how about the quality of the product?

A: our products have been strictly tested by QC before being delivered to customers. We sell our brand online in China's domestic market, so quality is our first priority!


Q: is this product only used in schools?

A:Our products are widely used in hospitals, schools, offices and so on.


Q: how can I trust the quality of your products?

A: We have been engaged in the business display industry for more than ten years, have independent product R & D institutions, have strong independent R & D ability of new products, and have passed a series of domestic and international quality management system certification, 3C certification, energy saving certificate, test report, national high-tech enterprise certificate, CNAs quality certification, CE certificate, FCC certificate, ROHS certificate, biso9001 certification, ISO environmental management The product implementation standard certificate is also the designated brand in the domestic government procurement list. The market share has doubled for several consecutive years. The company has a number of invention patents, utility model patents, design patents, intellectual property rights, copyrights, etc.


Q: what is your after-sales service?

A: If you have any questions, you will get our reply within 24 hours. And provide solutions immediately.
