Qtenboard LCD Video Wall: Diverse Mounting Solutions for All Commercial Scenarios

As a proven staple in commercial display industry, Qtenboard LCD video walls stand out with ultra-narrow bezels, high contrast ratios and ultra-wide viewing angles, making them ideal for command centers, corporate meeting rooms, exhibition halls and retail outlets. Construction conditions including wall load capacity, room dimensions and maintenance demands vary drastically across projects, so one single mounting style cannot fit every site. To resolve common engineering challenges, Qtenboard has developed four mainstream installation solutions: wall mount, front-service bracket, floor cabinet and floor stand. Customers can select matching structures based on on-site conditions to balance aesthetics, safety and easy maintenance, delivering all-in-one large-screen visualization solutions for smooth project deployment.

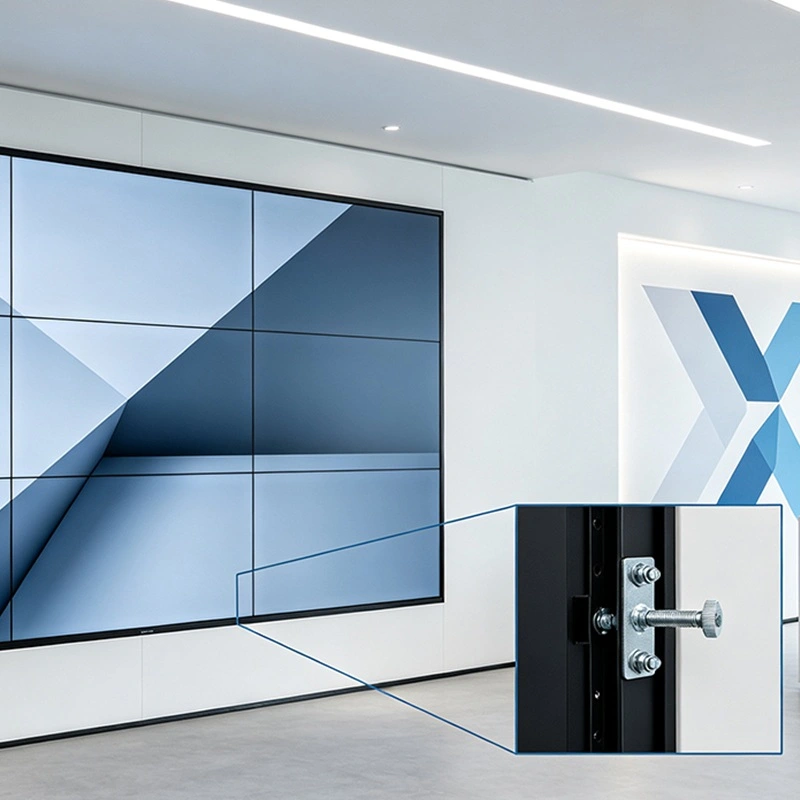

Wall mounting is the most widely adopted installation method, suitable for indoor spaces with solid load-bearing walls and medium or small-scale splicing layouts such as corporate meeting rooms, reception backdrop walls and brand retail display zones. Heavy-duty dedicated wall brackets secure screens firmly to load-bearing walls via expansion bolts. Panels sit closely against the wall without occupying floor depth, creating a neat minimalist look with short construction cycles and controllable overall costs. However, this solution requires sturdy supporting walls; gypsum or hollow walls must be reinforced with steel frames in advance. A major limitation is the mandatory rear access gap for repairs, which complicates maintenance in narrow spaces.

Front-service brackets serve as the perfect alternative for compact sites with no room behind the display for servicing. Equipped with hydraulic push-pull mechanisms, each screen panel can pop out forward, allowing technicians to conduct inspections and module replacements entirely from the front without reserved rear clearance, maximizing usable floor area. Mounted on solid walls with a sleek flat appearance identical to standard wall mounts, they are popular for compact control rooms, embedded exhibition areas and elevator lobbies. Precision-engineered brackets support multi-dimensional fine-tuning to ensure uniform splicing gaps, cutting down time spent on routine equipment upkeep.

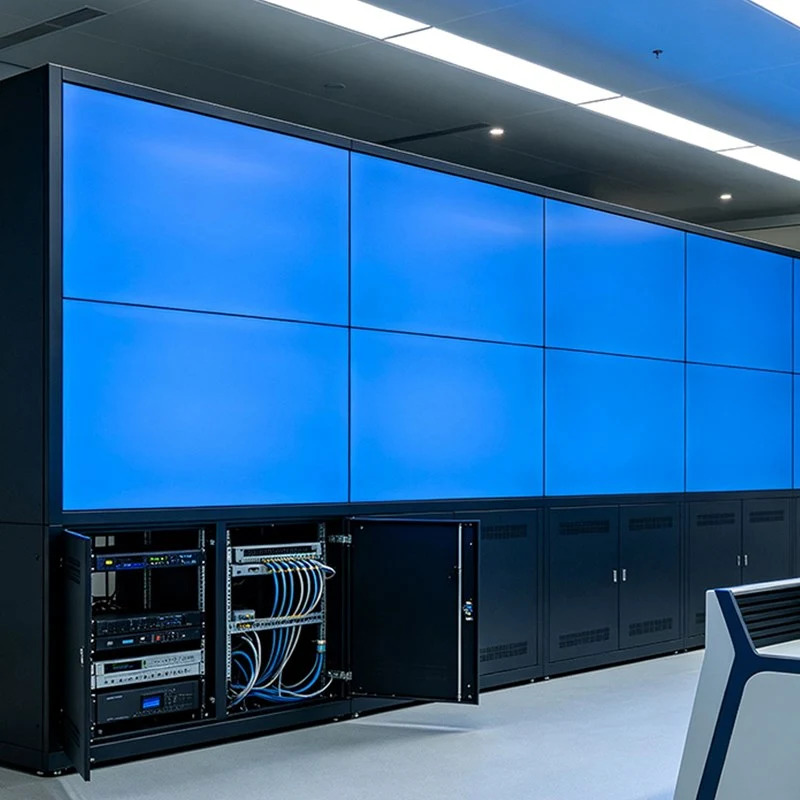

Floor cabinets and open floor stands are both wall-free solutions, yet they differ greatly in structure and application. Floor cabinets are integrated enclosed metal enclosures with outstanding stability. All cables, power adapters and decoding hardware are neatly concealed inside lockable cabinet doors for convenient wiring and servicing. With an elegant solid appearance, they are the top choice for large traffic and public security monitoring command centers. Cabinets bear the full weight of the entire video wall and require flat ground surfaces; once installed, they are rarely relocated and offer robust protection for round-the-clock continuous operation.

Open floor stands feature lightweight metal frames placed directly on level floors without wall support. Internal channels hide all wiring, and the design is more affordable and easier to disassemble or transport than floor cabinets. Some versions are fitted with rolling casters for flexible repositioning, perfectly fitting temporary expos, conferences and open offices lacking mountable walls. Qtenboard configures customized mounting plans after site surveys to ensure stable, high-definition display performance across all industries with reliable visual support.
