Interactive Flat Panel Bidding Supplier from China
We turn your bidding risk into guaranteed ROI - from tender document to classroom installation.
As a factory, Qtenboard has completed over 300 government bidding projects for interactive all-in-one machines.
Their countries are respectively Uzbekistan, Kazakhstan, Kyrgyzstan, Russia, Armenia, Vietnam, Thailand, Singapore, Indonesia, Brazil, Argentina, Mexico, South Africa, Kenya, India and so on.
We cooperate with the government's requirements and customize products through OEM and ODM.
We have a short production cycle, stable quality and fast delivery time. We cooperate with cooperative transportation companies to safely deliver the products to customers.
Engineered for Emerging Markets
✓ Offline AI Assistant: Lesson plans & student analytics without internet
✓ Multi-OS Compatibility: Windows, Android
✓ Extreme Environment Rating: -20°C to 60°C operation (Mongolia to Indonesia proven)
Tender Bidders' Top Pain Points & Our Factory Solutions
| Pain Point | Our Factory Solution | Key Benefit |
| Technical bid failure | Pre-tender compliance screening - Free AI analysis of RFP documents - 2000+ UNESCO/World Bank-approved technical clauses | → 88% technical bid pass rate since 2022 |
| Profit erosion by rivals | Cost-transparent pricing - BOM breakdown + duty calculator - Volume-based rebates (up to 7%) | → Win bids at 10% higher price (Indonesia) |
| Local content rules | BRI localization packages - Egypt: 60% local assembly via Cairo SKD factory - Vietnam: ASEAN-China FTA 0% tariff routes | → 72-hour certification for "Made in China" |
| Payment delays & cash flow | Financing safeguards - 30% deposit + 70% shipment - Sinosure-covered 85% political risk | → Reduce cash pressure by 67% |
| Customs delays & penalties | Dedicated BRI logistics - China-Europe rail + Africa pre-warehouses - Daily delay penalty: 0.2% contract value | → 98% on-time delivery in 2023 BRI projects |
| Post-win service gaps | Local capacity building - Train-the-trainer programs - Remote diagnostics solve 75% issues | → 12-country service network |
Success Across 12 Time Zones
Pakistan
"5,000 units deployed in Punjab Province schools with local Urdu OS"
Kenya
"Reduced teacher training time by 60% under UNESCO partnership"
Globally Trusted, Locally Certified
ISO 9001 4001 27001 45001
CB CE Rohs FCC COO CCC
Top Search Terms for BRI Partners
affordable smart board for Africa schools | multi-language interactive display | classroom technology humid climate
What Qtenboard has?
Product Certification: CE, FCC, RoHS, REACH, CCC, and more.
Factory Certification: ISO 9001 4001 27001 45001 and more.

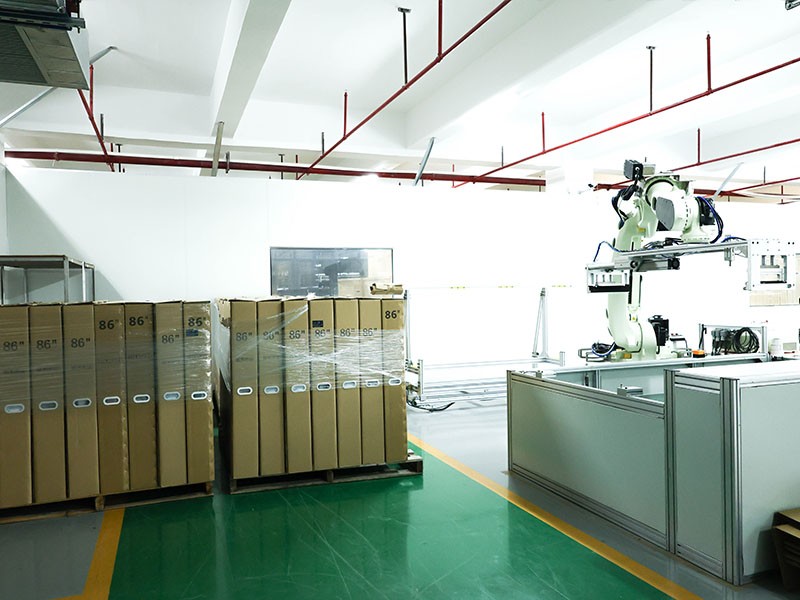

Robot Production Line: YES.
Professional Sales Team: More then 50 people.
Professional Technical Team: 10 people.
Professional Ai Technical Team: 15 people.
Also we support: Personnel training, provision of payment terms and after-sales support.
Here are the 4 kinds of the Ai functions:
1, Speach to Text: It is capable of real-time translation between two languages
2,Meeting Minutes: It is capable of real-time translation between two languages, summarize the content of the meeting
3,Q&A: Summarize the answers to the questions based on the content of big data
4,Smart Assistant: Wake up the Ai intelligent robot by saying "hello hello" and control the panel by speaking
Here are the 9679 chip's information, also we can do the V100, 311D2, T982, 3576, RK3588, 8195 and more
| Size | 65'' | 75'' | 86'' and more |
| Function summary and product advantage | |||
| 1. LCD panel is for BOE brand and A+ grade panel | |||
| 2. with Anti-glare glass on surface + zero gap bonding process | |||
| 3. with split screen function + Wireless screen transmission, multi-screen interaction, Wireless projection and others functions | |||
| 4. with light sensor, can adjust lcd screen brightness according to the environment, to fit different place use and protect eyes, and also can save power. | |||
| LCD Specifications | |||
| LCD size | 65" | 75" | 86" |
| Resolution | 3840*2160 4K resolution | 3840*2160 4K resolution | 3840*2160 4K resolution |
| Brightness | 350cd/m² | 400cd/m² (typ.) | 450cd/m² |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 |
| Color Depth | 16.7M(8bit) | 16.7M(8bit) | 16.7M(8bit) |
| Response time | 6ms | 6ms | 6ms |
| Viewing area | 1428.5mm(H)×803.5mm(V) | 1650.2mm(H)×928.3mm(V) | 1895.04mm(H)×1065.96mm(V) |
| Visual Angle | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) |
| LCD life | 60,000 hrs | 60,000 hrs | 60,000 hrs |
| Android Specifications | |||
| CPU | MEDIATEK 9679, Ouad-core A73 | MEDIATEK 9679, Ouad-core A73 | MEDIATEK 9679, Ouad-core A73 |
| GPU | Mali G52-MC1 | Mali G52-MC1 | Mali G52-MC1 |
| Android OS | Android 14.0 | Android 14.0 | Android 14.0 |
| RAM+ROM | 4+32G/8+128G (Optional) | 4+32G/8+128G (Optional) | 4+32G/8+128G (Optional) |
| WIFI | 2.4G&5G | 2.4G&5G | 2.4G&5G |
| Bluetooth | 5.0 | 5.0 | 5.0 |
| RJ45 | 100M | 100M | 100M |
| Video format | MPEG2-4,H.264,H.265, TS and ect | MPEG2-4,H.264,H.265, TS and ect | MPEG2-4,H.264,H.265, TS and ect |
| Picture format | JPG, JPEG, BMP, PNG and ect | JPG, JPEG, BMP, PNG and ect | JPG, JPEG, BMP, PNG and ect |
| USB lcok | support | support | support |
| HDMI lock | support | support | support |
| Screen lock | support | support | support |
| Pattern lock | support | support | support |
| APK install lock | support | support | support |
| Wireless projection | Support Photool, EShare, USB display | Support Photool, EShare, USB display | Support Photool, EShare, USB display |
| Remarks function | support all channel remarks | support all channel remarks | support all channel remarks |
| OS language | English/French/Spanish/Russian and ect | English/French/Spanish/Russian and ect | English/French/Spanish/Russian and ect |
| Interface (standard specs interface) | |||
| LINE IN | *1 | *1 | *1 |
| LINE OUT | *1 | *1 | *1 |
| RJ45 | *1 | *1 | *1 |
| USB 2.0 | *2 | *2 | *2 |
| USB 3.0 | *1 | *1 | *1 |
| TYPE C | *1 | *1 | *1 |
| HDMI IN | *2 | *2 | *2 |
| TOUCH OUT | *1 | *1 | *1 |
| RS232 | *1 | *1 | *1 |
| SPDIF OUT | *1 | *1 | *1 |
| Front side interface | |||
| TYPE C ( USB 2.0) | *1 | *1 | *1 |
| HDMI IN | *1 | *1 | *1 |
| TOUCH OUT （usb 2.0） | *1 | *1 | *1 |
| USB 2.0 | *3 | *3 | *3 |
| Touch screen Specs | |||
| Touch type | Infrared touch + zero gap bonding | Infrared touch + zero gap bonding | Infrared touch + zero gap bonding |
| Touch point | 40 point | 40 point | 40 point |
| Touch height | 1mm | 1mm | 1mm |
| Camera | |||
| Built in camera 48MP and 8 Array Mic | Optional | Optional | Optional |
| Power | |||
| Speaker | 15W*2 | 15W*2 | 15W*2 |
| Standby power | ≤0.5W | ≤0.5W | ≤0.5W |
| Power supply | AC100V-240V,50-60 Hz | AC100V-240V,50-60 Hz | AC100V-240V,50-60 Hz |
| Power consuption (not include OPS） | ≤200W | ≤320W | ≤410W |
| Working environment | |||
| Working tempurature | 0℃~40℃ | 0℃~40℃ | 0℃~40℃ |
| Working humidity | 20%～85%（no condensation） | 20%～85%（no condensation） | 20%～85%（no condensation） |
| Storage tempurature | -10℃～60℃ | -10℃～60℃ | -10℃～60℃ |
| Storage humidity | 10%～60%（no condensation） | 10%～60%（no condensation） | 10%～60%（no condensation） |
| Case materials | |||
| Case materials | Aluminium frame + tempering glass + metal cover | Aluminium frame + tempering glass + metal cover | Aluminium frame + tempering glass + metal cover |
| Case color | Black | Black | Black |
| Size (W*D*H) | |||
| Unit size (W*D*H) | 1485（L）*88.3（W）*901.8（H）mm | 1707.1（L）*88.5（W）*1026.7（H）mm | 1953.4（L）*96.5（W）*1166.6（H）mm |
| Packing size (W*D*H) | 1580（L）*205（W）*1000（H）mm | 1810（L）*205（W）*1150（H）mm | 2060（L）*205（W）*1331（H）mm |
| VESA Hole | 400*500mm, 4*M8 screw | 400*600mm, 4*M8 screw | 400*800mm, 4*M8 screw |
| Weight | |||
| Net Weight | 36±1.5 Kg | 50 ±1.5 Kg | 63 ±1.5 Kg |
| Gross Weight | 43±1.5kg | 58.5±1.5 Kg | 74.5±1.5 Kg |
| Standard accessories | |||
| Remote control | *1 | *1 | *1 |
| 1.5m Power cable | *1 | *1 | *1 |
| Touch pen | *1 | *1 | *1 |
| Wall mount bracket | *1 | *1 | *1 |
| Antenna | *3 | *3 | *3 |
| Optional accessories | |||

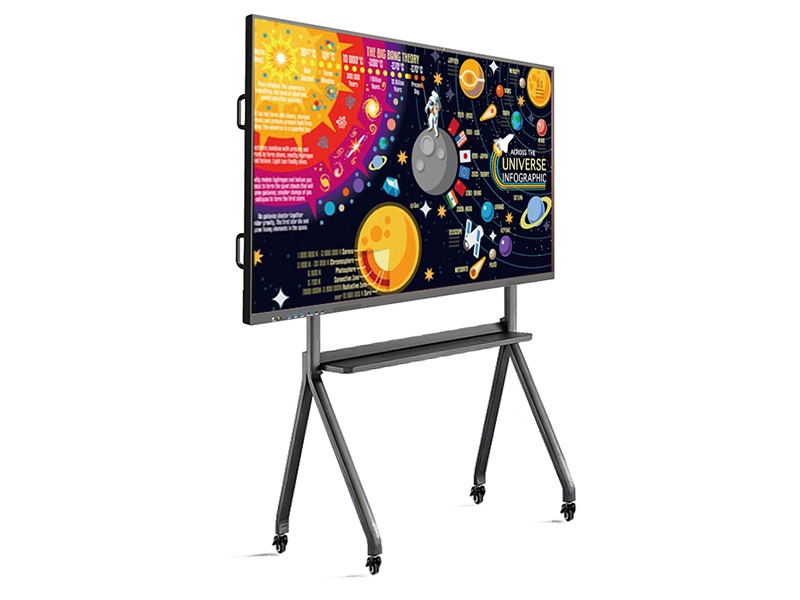

| Movable stand | Different models (Optional) | ||
| Smart Pen | Qty optional | ||
| Wireless projector | Qty optional | ||
| Teacher's pointer | Qty optional | ||
| HDMI cable | 3m/5m/10m (Optional) | ||
| USB cable | 3m/5m/10m (Optional) | ||
| Container for CBU | |||
| 40HQ (for each size) | 220pcs | 166pcs | 138pcs |
