If you are a brand owner of an interactive whiteboard，maybe here are some problem you are going with:
1,Complex channel management, long sales cycle, and intense competition
2,Inventory risk, technological iteration
3,Supplier's products are unstable and the after-sales service has increased
How Qtenboard sole this problem?
1,Qtenboard has the DMS system, which can control all the interactive whiteboard you sold all over the world;
2,Qtenbaord has owm Customs Data, and based on 20 years of sales data analysis about the interactive whiteboard, we control
the inventory preparation time, transportation time and sales time of sales data;
3,Qtenboard has the unique Ai technology, constantly upgraded. For now here are 4 kinds of the Ai function, can be updated
online or with the USB local firmware upgrade;
4,Qtenboard is a new brand, but we are the interactive whiteboard factory with a history. We have been supplying completely
disassembled materials such as shells, diaphragms and LED beads to other interactive whiteboard brands for 20 years.
They use them to make complete machines. Untill now we still do the CKD/ SKD to China factory or the others contries' factory.
What Qtenboard has?
Product Certification: CE, FCC, RoHS, REACH, CCC, and more.
Factory Certification: ISO 9001 4001 27001 45001 and more.

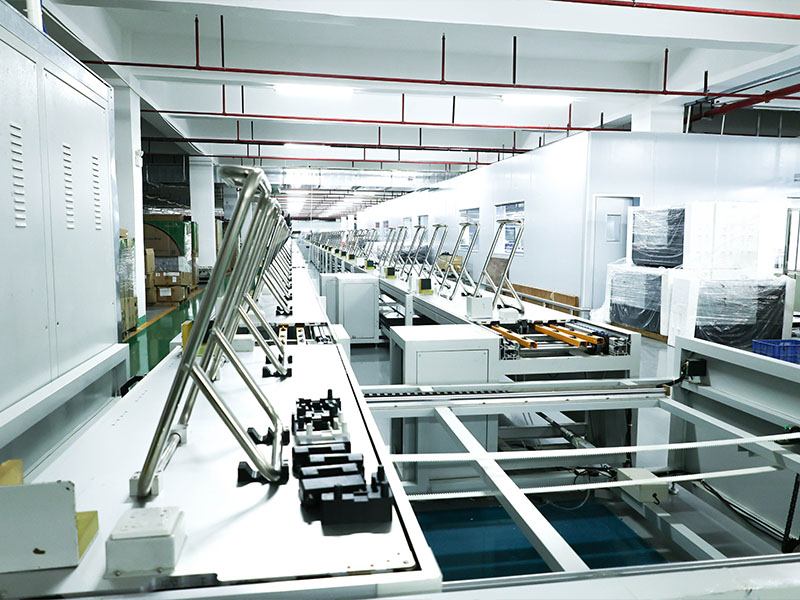

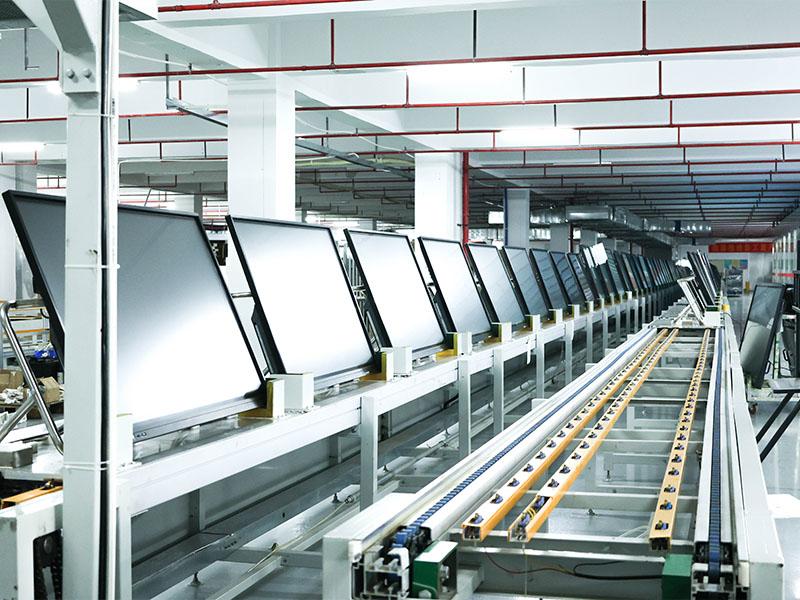

Robot Production Line: YES.
Professional Sales Team: More then 50 people.
Professional Technical Team: 10 people.
Professional Ai Technical Team: 15 people.
Here are the 4 kinds of the Ai functions:
1, Speach to Text: It is capable of real-time translation between two languages
2,Meeting Minutes: It is capable of real-time translation between two languages, summarize the content of the meeting
3,Q&A: Summarize the answers to the questions based on the content of big data
4,Smart Assistant: Wake up the Ai intelligent robot by saying "hello hello" and control the panel by speaking
Here are the 9679 chip's information, also we can do the V100, 311D2, T982, 3576, RK3588, 8195 and more
| Size | 65'' | 75'' | 86'' and more |
| Function summary and product advantage | |||
| 1. LCD panel is for BOE brand and A+ grade panel | |||
| 2. with Anti-glare glass on surface + zero gap bonding process | |||
| 3. with split screen function + Wireless screen transmission, multi-screen interaction, Wireless projection and others functions | |||
| 4. with light sensor, can adjust lcd screen brightness according to the environment, to fit different place use and protect eyes, and also can save power. | |||
| LCD Specifications | |||
| LCD size | 65" | 75" | 86" |
| Resolution | 3840*2160 4K resolution | 3840*2160 4K resolution | 3840*2160 4K resolution |
| Brightness | 350cd/m² | 400cd/m² (typ.) | 450cd/m² |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 |
| Color Depth | 16.7M(8bit) | 16.7M(8bit) | 16.7M(8bit) |
| Response time | 6ms | 6ms | 6ms |
| Viewing area | 1428.5mm(H)×803.5mm(V) | 1650.2mm(H)×928.3mm(V) | 1895.04mm(H)×1065.96mm(V) |
| Visual Angle | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) |
| LCD life | 60,000 hrs | 60,000 hrs | 60,000 hrs |
| Android Specifications | |||
| CPU | MEDIATEK 9679, Ouad-core A73 | MEDIATEK 9679, Ouad-core A73 | MEDIATEK 9679, Ouad-core A73 |
| GPU | Mali G52-MC1 | Mali G52-MC1 | Mali G52-MC1 |
| Android OS | Android 14.0 | Android 14.0 | Android 14.0 |
| RAM+ROM | 4+32G/8+128G (Optional) | 4+32G/8+128G (Optional) | 4+32G/8+128G (Optional) |
| WIFI | 2.4G&5G | 2.4G&5G | 2.4G&5G |
| Bluetooth | 5.0 | 5.0 | 5.0 |
| RJ45 | 100M | 100M | 100M |
| Video format | MPEG2-4,H.264,H.265, TS and ect | MPEG2-4,H.264,H.265, TS and ect | MPEG2-4,H.264,H.265, TS and ect |
| Picture format | JPG, JPEG, BMP, PNG and ect | JPG, JPEG, BMP, PNG and ect | JPG, JPEG, BMP, PNG and ect |
| USB lcok | support | support | support |
| HDMI lock | support | support | support |
| Screen lock | support | support | support |
| Pattern lock | support | support | support |
| APK install lock | support | support | support |
| Wireless projection | Support Photool, EShare, USB display | Support Photool, EShare, USB display | Support Photool, EShare, USB display |
| Remarks function | support all channel remarks | support all channel remarks | support all channel remarks |
| OS language | English/French/Spanish/Russian and ect | English/French/Spanish/Russian and ect | English/French/Spanish/Russian and ect |
| Interface (standard specs interface) | |||
| LINE IN | *1 | *1 | *1 |
| LINE OUT | *1 | *1 | *1 |
| RJ45 | *1 | *1 | *1 |
| USB 2.0 | *2 | *2 | *2 |
| USB 3.0 | *1 | *1 | *1 |
| TYPE C | *1 | *1 | *1 |
| HDMI IN | *2 | *2 | *2 |
| TOUCH OUT | *1 | *1 | *1 |
| RS232 | *1 | *1 | *1 |
| SPDIF OUT | *1 | *1 | *1 |
| Front side interface | |||
| TYPE C ( USB 2.0) | *1 | *1 | *1 |
| HDMI IN | *1 | *1 | *1 |
| TOUCH OUT （usb 2.0） | *1 | *1 | *1 |
| USB 2.0 | *3 | *3 | *3 |
| Touch screen Specs | |||
| Touch type | Infrared touch + zero gap bonding | Infrared touch + zero gap bonding | Infrared touch + zero gap bonding |
| Touch point | 40 point | 40 point | 40 point |
| Touch height | 1mm | 1mm | 1mm |
| Camera | |||
| Built in camera 48MP and 8 Array Mic | Optional | Optional | Optional |
| Power | |||
| Speaker | 15W*2 | 15W*2 | 15W*2 |
| Standby power | ≤0.5W | ≤0.5W | ≤0.5W |
| Power supply | AC100V-240V,50-60 Hz | AC100V-240V,50-60 Hz | AC100V-240V,50-60 Hz |
| Power consuption (not include OPS） | ≤200W | ≤320W | ≤410W |
| Working environment | |||
| Working tempurature | 0℃~40℃ | 0℃~40℃ | 0℃~40℃ |
| Working humidity | 20%～85%（no condensation） | 20%～85%（no condensation） | 20%～85%（no condensation） |
| Storage tempurature | -10℃～60℃ | -10℃～60℃ | -10℃～60℃ |
| Storage humidity | 10%～60%（no condensation） | 10%～60%（no condensation） | 10%～60%（no condensation） |
| Case materials | |||
| Case materials | Aluminium frame + tempering glass + metal cover | Aluminium frame + tempering glass + metal cover | Aluminium frame + tempering glass + metal cover |
| Case color | Black | Black | Black |
| Size (W*D*H) | |||
| Unit size (W*D*H) | 1485（L）*88.3（W）*901.8（H）mm | 1707.1（L）*88.5（W）*1026.7（H）mm | 1953.4（L）*96.5（W）*1166.6（H）mm |
| Packing size (W*D*H) | 1580（L）*205（W）*1000（H）mm | 1810（L）*205（W）*1150（H）mm | 2060（L）*205（W）*1331（H）mm |
| VESA Hole | 400*500mm, 4*M8 screw | 400*600mm, 4*M8 screw | 400*800mm, 4*M8 screw |
| Weight | |||
| Net Weight | 36±1.5 Kg | 50 ±1.5 Kg | 63 ±1.5 Kg |
| Gross Weight | 43±1.5kg | 58.5±1.5 Kg | 74.5±1.5 Kg |
| Standard accessories | |||
| Remote control | *1 | *1 | *1 |
| 1.5m Power cable | *1 | *1 | *1 |
| Touch pen | *1 | *1 | *1 |
| Wall mount bracket | *1 | *1 | *1 |
| Antenna | *3 | *3 | *3 |
| Optional accessories | |||
| Movable stand | Different models (Optional) | ||
| Smart Pen | Qty optional | ||
| Wireless projector | Qty optional | ||
| Teacher's pointer | Qty optional | ||
| HDMI cable | 3m/5m/10m (Optional) | ||
| USB cable | 3m/5m/10m (Optional) | ||
| Container for CBU | |||
| 40HQ (for each size) | 220pcs | 166pcs | 138pcs |
