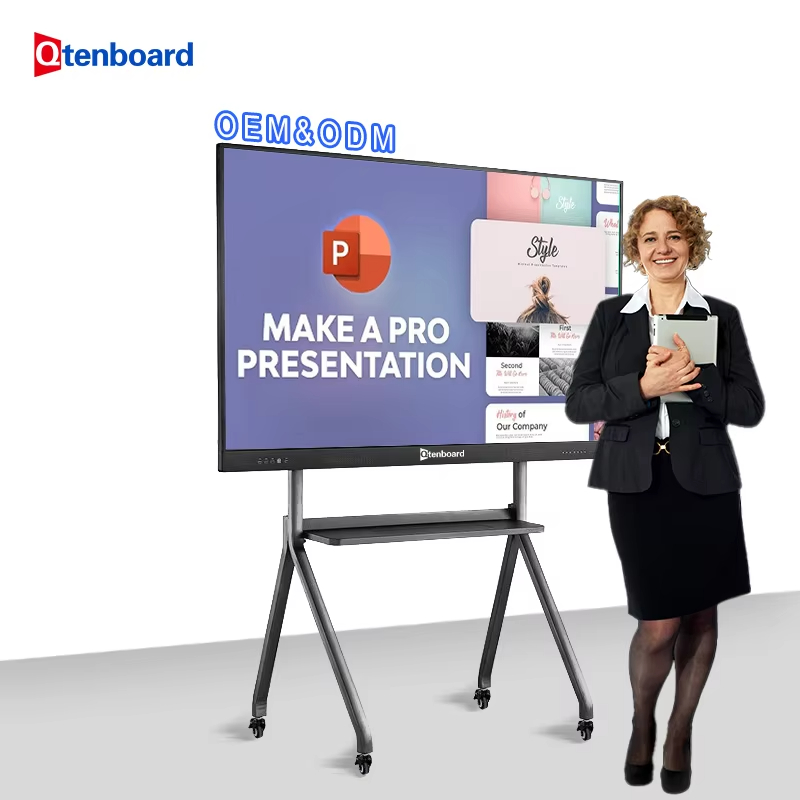

65 75 85 86 98 100 105 110 inch 4k display smart digital board ir touch screen interactive whiteboard for online education
>>> Our Factory Video <<<
Qunmao factory wholesale high quality 4k UHD touch screen interactive whiteboards at competitive prices. Our interactive whiteboards feature high-resolution 4k UHD display, touch-sensitive technology, and interactive software for engaging presentations and collaborative work. Contact us for more information on pricing and customization options.
Smart interactive whiteboard
Screen size:65/75/85/86/98/100/105/110 inch
Function summary and product advantage
1. LCD panel is for BOE brand and A+ grade panel
2. with Anti-glare glass on surface + zero gap bonding process
3. with split screen function + Wireless screen transmission, multi-screen interaction, Wireless projection and others functions
4. with light sensor, can adjust lcd screen brightness according to the environment, to fit different place use and protect eyes, and also can save power.
T982.81 Version Smart Interactive Whiteboard Description
| LCD Specifications: | |||
| LCD size | 65" | 75" | 86" |
| Resolution | 3840*2160 4K resolution | 3840*2160 4K resolution | 3840*2160 4K resolution |
| Pixel pitch | 0.372 mm x 0.372 mm | 0.4296mm x 0.4296 mm | 0.4935 mm x 0.4935 mm |
| Brightness | 350cd/m² (typ.) | 400cd/m² (typ.) | 450cd/m² (typ.) |
| Contrast Ratio | 4000:1 (typ.) | 4000:1 (typ.) | 4000:1 (typ.) |
| Color Depth | 16.7M(8bit) | 16.7M(8bit) | 16.7M(8bit) |
| Response time | 6ms (typ.) | 6ms (typ.) | 6ms (typ.) |
| Viewing area | 1428.5mm(H)×803.5mm(V) | 1650.2mm(H)×928.3mm(V) | 1895.04mm(H)×1065.96mm(V) |
| Visual Angle | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) |
| LCD life | 60,000 hrs (typ.) | 60,000 hrs (typ.) | 60,000 hrs (typ.) |
| Android Specifications | |||
| CPU | Amlogic T982 ARM Cortex-A55*4 @ 1.9GHz | Amlogic T982 ARM Cortex-A55*4 @ 1.9GHz | Amlogic T982 ARM Cortex-A55*4 @ 1.9GHz |
| GPU | Mali G52MP2 | Mali G52MP2 | Mali G52MP2 |
| Android OS | Android 14.0 | Android 14.0 | Android 14.0 |
| RAM+ROM | 4+32G/8+128G (Optional) | 4+32G/8+128G (Optional) | 4+32G/8+128G (Optional) |
| Bluetooth | 5.0 | 5.0 | 5.0 |
| RJ45 | 1000M | 1000M | 1000M |
| Video format | MPEG2-4,H.264,H.265, TS and ect | MPEG2-4,H.264,H.265, TS and ect | MPEG2-4,H.264,H.265, TS and ect |
| Picture format | JPG, JPEG, BMP, PNG and ect | JPG, JPEG, BMP, PNG and ect | JPG, JPEG, BMP, PNG and ect |
| Child lock | support | support | support |
| Wireless projection | support | support | support |
| Remarks function | support all channel remarks | support all channel remarks | support all channel remarks |
| OSD language | English/French/Spanish/Russian and ect | English/French/Spanish/Russian and ect | English/French/Spanish/Russian and ect |
| Interface (standard specs interface) | |||
| HDMI OUT | *1 | *1 | *1 |
| HDMI IN | *2 | *2 | *2 |
| RJ45 | *2 | *2 | *2 |
| VGA+PC AUDIO IN | *1 | *1 | *1 |
| DP | *1 | *1 | *1 |
| (Mini) LINE OUT | *1 | *1 | *1 |
| OPTICAL OUT | *1 | *1 | *1 |
| RS232 | *1 | *1 | *1 |
| USB 2.0 | *1 | *1 | *1 |
| USB Type C | *1 | *1 | *1 |
| TOUCH OUT （USB 2.0） | *1 | *1 | *1 |
| USB 3.0 | *2 | *2 | *2 |
| LAN IN | *1 | *1 | *1 |

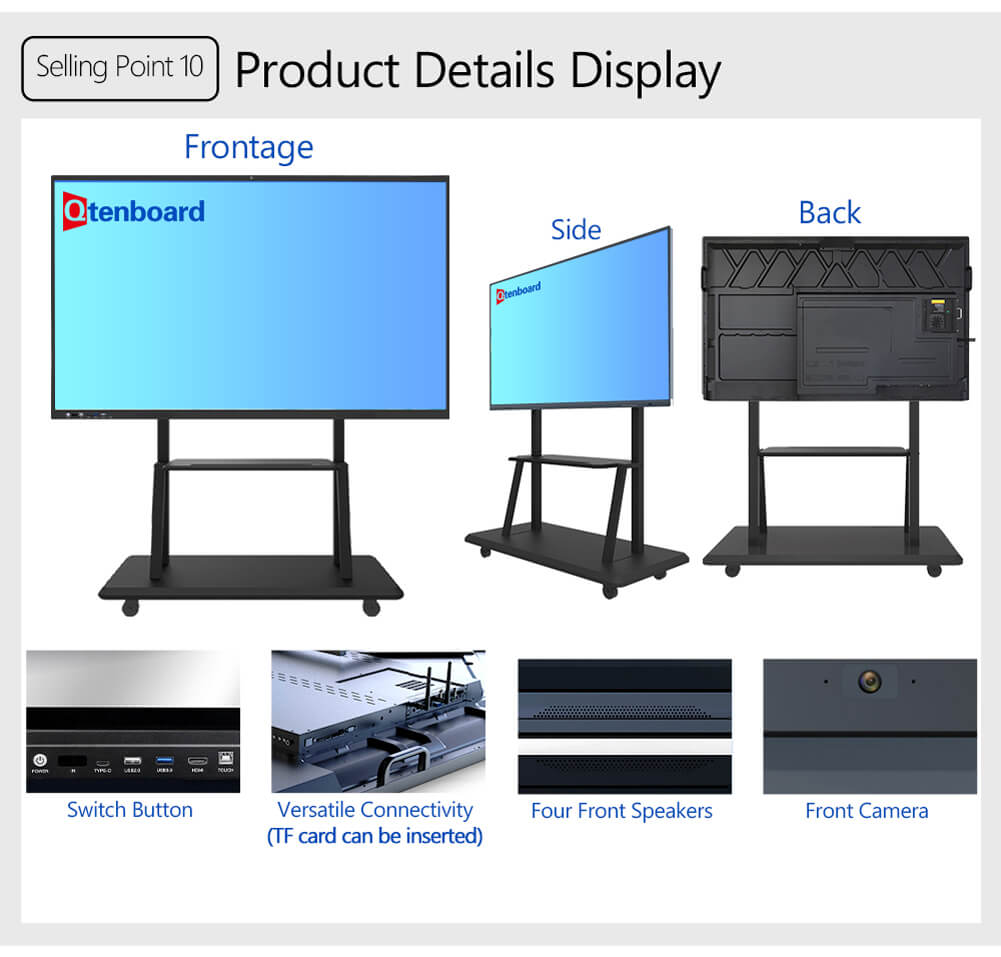

| Front side interface | |||
| TYPE C ( USB 2.0) | *1 | *1 | *1 |
| HDMI IN | *1 | *1 | *1 |
| TOUCH OUT （usb 2.0） | *1 | *1 | *1 |
| USB-A | *2 | *2 | *2 |
| Touch screen Specs | |||
| Touch type | Infrared touch + zero gap bonding | Infrared touch + zero gap bonding | Infrared touch + zero gap bonding |
| Touch point | 20 point | 20 point | 20 point |
| Touch height | 2mm | 2mm | 2mm |
| Camera | |||
| Built in camera and 8 Array Mic | Optional | Optional | Optional |
T982.81 Version Smart Interactive Whiteboard
| LCD brightness ajust according to environment | |||
| Light sensor | support | support | support |
| Power | |||
| Speaker | 15W*2 | 15W*2 | 15W*2 |
| Standby power | ≤0.5W | ≤0.5W | ≤0.5W |
| Power supply | AC100V-240V,50-60 Hz | AC100V-240V,50-60 Hz | AC100V-240V,50-60 Hz |
| Power consuption (not include OPS） | ≤200W | ≤320W | ≤410W |
| Working environment | |||
| Working tempurature | 0℃~40℃ | 0℃~40℃ | 0℃~40℃ |
| Working humidity | 20%～85%（no condensation） | 20%～85%（no condensation） | 20%～85%（no condensation） |
| Storage tempurature | -10℃～60℃ | -10℃～60℃ | -10℃～60℃ |
| Storage humidity | 10%～60%（no condensation） | 10%～60%（no condensation） | 10%～60%（no condensation） |
| Case materials | |||
| Case materials | Aluminium frame + tempering glass + metal cover | Aluminium frame + tempering glass + metal cover | Aluminium frame + tempering glass + metal cover |
| Case color | Black | Black | Black |
| Size (W*D*H) | |||
| Unit size (W*D*H) | 1485（L）*88.3（W）*901.8（H）mm | 1707.1（L）*88.5（W）*1026.7（H）mm | 1953.4（L）*96.5（W）*1166.6（H）mm |
| Packing size (W*D*H) | 1580（L）*205（W）*1000（H）mm | 1810（L）*205（W）*1150（H）mm | 2060（L）*205（W）*1331（H）mm |
| VESA Hole | 400*500mm, 4*M8 screw | 400*600mm, 4*M8 screw | 400*800mm, 4*M8 screw |
| Weight | |||
| Net Weight | 36±1.5 Kg | 50 ±1.5 Kg | 63 ±1.5 Kg |
| Gross Weight | 43±1.5kg | 58.5±1.5 Kg | 74.5±1.5 Kg |
| Standard accessories | |||
| Remote control | *1 | *1 | *1 |
| 1.5m Power cable | *1 | *1 | *1 |
| Touch pen | *1 | *1 | *1 |
| Wall mount bracket | *1 | *1 | *1 |
| Antenna | *2 | *2 | *2 |
| Optional accessories | |||
| Movable stand | Different models (Optional) | ||
| Smart Pen | Qty optional | ||
| Wireless projector | Qty optional | ||
| Teacher's pointer | Qty optional | ||
| HDMI cable | 3m/5m/10m (Optional) | ||
| USB cable | 3m/5m/10m (Optional) | ||
| Optional functions | |||
| Motion Sensors | Detects someone approaching and automatically wakes up | ||
| NFC | Turn on/turn off | ||
| Lock screen/unlock screen | |||
| Air quality detection | Issue prompts and early warnings when safe concentrations are exceeded | ||
| Touch pen bring detection | Quickly open the entrance to the whiteboard and comments | ||
| Fingerprint | Turn on/turn off | ||
| Subwoofer | 20W | ||
| Teaching whiteboard software | 1.0 Smartboard / 2.0 Qboard (Optional) | ||
| DMS | Yes/No (Optional) | ||
