46 Inch Full Color Led Panel Indoor control room LCD display 1.7mm splicing Screen lcd Video Wall Controller
China Qunmao Splicing Screen LCD Video Wall Wholesale – We offer high-quality, seamless LCD video display monitor products at competitive prices from certified Qunmao LCD video wall panel Products manufacturers, LCD wall display suppliers, wholesalers and factories.
Different Size: 46 inch/49 inch/55 inch/65 inch Screen can support
Narrow bezel Splicing: 3.5mm/0.88mm/1.8mm/1.7mm/0mm optional
46 inch 1.7mm Splicing screen lcd video wall Product features
The Qunmao 46-inch LCD splicing screen utilises an LED backlight, offering a number of key benefits. These include a clearer picture, higher brightness, higher contrast, a longer service life, good colour saturation, low power consumption, energy conservation and environmental protection.
1. The QM-4604 uses a CSOT OC with a 1.7mm gap, 1920 x 1080 resolution, 500cd/m² brightness, 4500:1 contrast, 178-degree viewing angle, and supports 1080P Full HD.
2. The hardware shell has built-in modules for power, driver board, I/O interface, display processor and cooling. The temperature control module ensures stable and safe operation.
3. The product has a block-spliced appearance and a fixed screw hole in the back shell. The screw can be fixed, making installation simple and quick.
4. The first overall chassis design and anti-drop advanced transport packaging; a variety of installation methods and high-grade bracket; can be freely matched for wall hanging, embedded installation, etc. It's easy to install and maintain.
5. The product has different signal interfaces, such as DP, VGA, HDMI, DVI, BNC, etc.
6. It can display multiple signals, full-screen, or a combination of the two, with subtitles.
7. Protecting the environment and your health. The Qunmao LCD screen is safe and healthy. It's an eco-friendly and healthy curtain wall. We have multiple patents and export to Europe, America, Africa, the Middle East, Southeast Asia and other regions.
8. Qunmao ultra narrow edge LCD splicing walls are used in many places, including security, telecommunications, water conservancy, command centres, education, government units, factories and mines, stage entertainment, advertising, stocks and securities, large exhibitions, shopping malls, banks, offices, stores, scheduling commands, etc.
46 inch 1.7mm Splicing screen lcd video wall Description
Model | QM-4604 |
Screen size (diagonal) | 46 inch |
Splicing gap | 1.7mm |
Backlight | LED |
Aspect Ratio | 16:9 |
Max Resolution | 1920×1080(Backwards compatible) |
Contrast Ratio | 4500:1 |
Brightness | 500cd/㎡ |
Active area | 1018.08mm(H)× 572.67mm(V) |
Color saturation | 97% |
Response time | 6.5ms |
Viewing Angle | 178° |
Service life | about 60,000 hours |
Panel color | Black/ Custom color |
Signal format | PAL/NTSC adapting 480I、576I、720I、720P、1080I、1080P |
Interface | Input:Power 、DVI 、HDMI、USB |
Control port | Input: serial port(RS232) |
Output: serial port(RS232)×2 | |
Panel control | Remote control |
Display function overview | Multi-signal split screen display, whole screen display, any combination of display, subtitles display |
Power consumption | Operating power:≤180W; Standby power:≤3W |
Language | English/Chinese;(Multilingual optional) |
Installation | Cabinet type, wall hanging, ceiling optional |
Structure | Strong solid metal casing, anti-static, anti magnetic field, anti strong interference |
Operating temperature / humidity | 0℃~50℃/20%~80%(non-condensing) |
Storage temperature / humidity | -10℃~60℃/5--95%(non-condensing) |
Accessories | Manual, Power cable, Certification, Warranty card |
Unit Dimension(mm) | 1022(L)×576.6(H)×70.1(D) |
Unit Weight | about 15kg (excluding accessories) |
third party control | Mobile phone, ipad, remote information software |
PIP, PBP, roaming, overlay | optiona |
DP/VGA/BNC port | optiona |
Narrow Bezel splicing gap 1.7mm
100% New Grade A+ Panel
Customized & Direct Factory Price
Fast Delivery Time 1-7 Days
CE,FCC,RoHS,CCC Certification
Dust-Free Plant,Quality Assurance
Quality Inspection For Every Step Of Production
We support customized product service if you want it!
>>>Please send us an inquiry<<<
What is an LCD Splicing Screen And LCD Video Wall ?
An LCD splicing screen, also known as a video wall, is a large display comprising multiple LCD panels stacked together to create a single, seamless image or video. These screens are frequently utilised in control rooms, advertising displays and other contexts where a large, high-resolution display is necessary. The panels can be arranged in a variety of configurations, including a grid or mosaic pattern, to create a bespoke display size and shape, offering versatility and flexibility in design.
An LCD video wall display is a large display comprising several LCD panels that are tiled together to create one image or video. These panels are thin and lightweight, allowing for close mounting to create a seamless viewing experience.
LCD video walls are utilised in numerous locations where a substantial, premium-quality display is required to showcase information, advertising or entertainment to a large audience. They are bright, vibrant and clear, making them suitable for indoor and outdoor use.
These displays can be configured in various ways, including 2x2, 3x3, 4x4 or larger formats. They are frequently managed by dedicated software to facilitate content management, scheduling and seamless integration with diverse input sources.

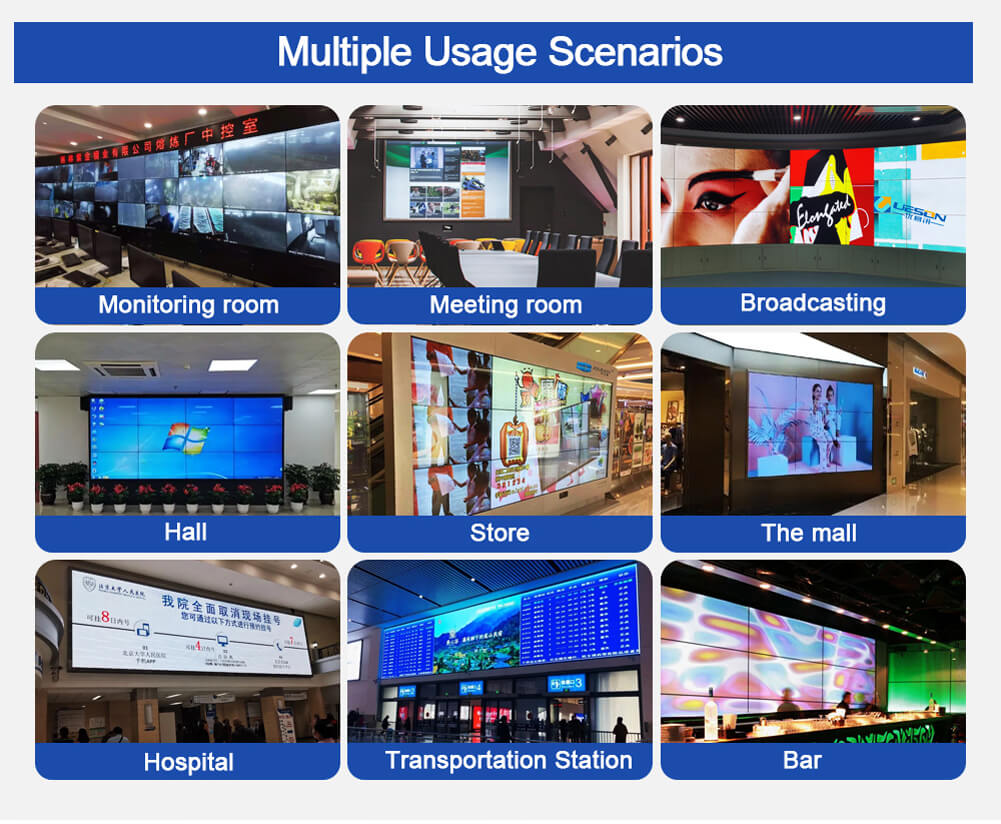

splicing screen lcd video wall Application
Our splicing products are designed to reach advertising media outlets and facilitate the delivery of content to large screens. Our products are suitable for a range of applications, including airports, financial institutions, metro stations, shopping malls, supermarkets, public spaces, government buildings, stadiums, traffic management, hotels, conference venues, banks, offices, entertainment venues, hospitals, schools, supermarkets, airports, and advertising.
Why Choose Qunmao Display?
Qunmao Display Technology Co., Ltd. was established in 2009 with a production base in Shenzhen, covering an area of 230000 square meters. The company focuses on high-tech technology enterprises specializing in the production, sales, software development, and service of LCD and central control equipment. It is a high-tech enterprise integrating intelligence, specialization, and Internet + of domestic and foreign video products, and the overall solution of domestic and foreign leading products. Solution OEM & ODM provider. Our product more than 85% export and has been receiving high reputation from customers over 50 countries and regions, such as: India, Morocco,Russia, Indonesia,USA, South Africa, Southeast Asia,pakistan, etc.
>>> Our Factory Video <<<
Qunmao manufacturing factory Main prdocuts include :Interactive whiteboard,interactive flat panel,splicing screens lcd video wall, smart advertising display, smart conference panel, educational tablets, smart blackboards, Digital signage,preschool education machines, interactive smartbaord,queue machine,etc. A high-end technology enterprise with products, it is a master in the field of high-end displays.
Certifications & Exhibitions
Our Manufacturer Popular Products Showcase
Advertising Player
All-in-One Interactive whiteboard
Splicing screen LCD video wall
Splicing screen lcd video Wall Functional features
1.500nit brightness, more than 85%NTSC gamut, clear display of 1.07 billion color details;
2.178° ultra wide viewing Angle, equipped with 4K ultra high definition resolution, showing the vitality of every pixel;
3.The 120Hz screen refresh rate makes the picture more smooth and clear and stable;
4.Explosion-proof tempered glass, Mohs grade 7 hardness, safety assurance;
5.Simple UI design, complex for simple, stable atmosphere, so that the operation into enjoyment;
6.High power shock sound, passion surging, like a rainbow;
7.Automatic color and image enhancement engine, restore true colors, fully display the beauty of color hierarchy;
8.Ultra-narrow frame design eliminates visual interference caused by physical frame to the maximum extent, and realizes perfect immersive display on large screen;
9.High precision CNC machining, all metal structure, reliable and stable;
10.Remote control simple and easy to operate, from the selection of materials to the concept, carefully created;
Our Services and Advantages
1. Extensive sales and manufacturing experience
2. High-tech and efficient equipment
3. Customisation, OEM and ODM Services are acceptable
4. Strictly adheres to ISO9001 standards
5. Extensive after-sales service
6. Competitive factory price and superior quality
7. All materials meet the standards
8. Exceptional customer focus and knowledge
9. Owning a production factory with a complete supply chain
10. Quick email response within 12 hours.
Packaging And Shipping
FAQ
Q: can you provide OEM services for the integrated interactive tablet?
A: Yes, it has received good support. We can customize it according to your requirements.
Q: do you have any stock?
A: We have 3000-5000 units in stock every month.
Q: is your company a real manufacturer?
A:Our company is a professional manufacturer in Shenzhen city. You are welcome to visit our factory at any time.
Q: how about the quality of the product?
A: our products have been strictly tested by QC before being delivered to customers. We sell our brand online in China's domestic market, so quality is our first priority!
Q: is this product only used in schools?
A:Our products are widely used in hospitals, schools, offices and so on.
Q: can you provide OEM services for the integrated interactive tablet?
A: Yes, it has received good support. We can customize it according to your requirements.
Q: do you have any stock?
A: We have 3000-5000 units in stock every month.
Q: is your company a real manufacturer?
A: Our company is a professional manufacturer in Shenzhen city. You are welcome to visit our factory at any time.
Q: how about the quality of the product?
A: our products have been strictly tested by QC before being delivered to customers. We sell our brand online in China's domestic market, so quality is our first priority!
Q: is this product only used in schools?
A:Our products are widely used in hospitals, schools, offices and so on.
Q: how can I trust the quality of your products?
A: We have been engaged in the business display industry for more than ten years, have independent product R & D
institutions, have strong independent R & D ability of new products, and have passed a series of domestic and international quality management system certification, 3C certification, energy saving certificate, test report, national high-tech enterprise certificate, CNAs quality certification, CE certificate, FCC certificate, ROHS certificate, biso9001 certification, ISO environmental management The product implementation standard certificate is also the designated brand in the domestic government procurement list. The market share has doubled for several consecutive years. The company has a number of invention patents, utility model patents, design patents, intellectual property rights, copyrights, etc.
Q: what is your after-sales service?
A: If you have any questions, you will get our reply within 24 hours. And provide solutions immediately.
