75 inch touch screen Interactive Flat Panel 4k ultra hd interactive whiteboard for school classroom
>>> Our Factory Video <<<
Factory Wholesale Smart digital board Interactive whiteboard supplier for Education and Business
An interactive board is the best way to improve school classroom education, teaching and government meetings!
Smart Interactive whiteboard Details
A 4K Ultra HD touch screen interactive whiteboard is a high-resolution display screen that allows users to interact with the content displayed on it using touch gestures. It features 4K resolution, which provides sharp and detailed images, and the interactive touch screen capability allows users to draw, write, annotate, and collaborate on the screen. It is commonly used in educational settings, conference rooms, and collaborative workspaces to enhance presentations, brainstorming sessions, and interactive learning experiences.
Function summary and product advantage
1. LCD panel is for BOE brand and A+ grade panel
2. with Anti-glare glass on surface + zero gap bonding process
3. with split screen function + Wireless screen transmission, multi-screen interaction, Wireless projection and others functions
4. with light sensor, can adjust lcd screen brightness according to the environment, to fit different place use and protect eyes, and also can save power.
V100-A version 75inch interactive whiteboard Description
| LCD Specifications | |
| LCD size | 75" |
| Resolution | 3840*2160 4K resolution |
| Pixel pitch | 0.4296mm x 0.4296 mm |
| Brightness | 400cd/m² (typ.) |
| Contrast Ratio | 4000:1 (typ.) |
| Color Depth | 16.7M(8bit) |
| Response time | 6ms (typ.) |
| Viewing area | 1650.2mm(H)×928.3mm(V) |
| Visual Angle | 178°(H) / 178°(V) |
| LCD life | 60,000 hrs (typ.) |
| Android Specifications | |
| CPU | Goke V100, Octa-core A55 @ 1.5GHz |
| GPU | Mail-G52*4 |
| Android OS | Android 14.0 |
| RAM+ROM | 4+32G/8+64G/8+128G (Optional) |
| WIFI | 2.4g&5g a/b/g/n +ac |
| Bluetooth | 5.0 |
| RJ45 | 100M |
| Video format | MPEG2-4,H.264,H.265, TS and ect |
| Picture format | JPG, JPEG, BMP, PNG and ect |
| Child lock | support |
| Wireless projection | support |
| Remarks function | support all channel remarks |
| OSD language | English/French/Spanish/Russian and ect |
| Interface (standard specs interface) | |
| HDMI OUT | *1 |
| TF CARD | *1 |
| HDMI IN | *2 |
| LAN IN | *1 |
| LAN OUT | *1 |
| VGA | *1 |
| PC AUDIO IN | *1 |
| MIC IN | *1 |
| DP | *1 |
| LINE OUT | *1 |
| RS232 | *1 |
| USB 2.0 | *1 |
| TOUCH OUT （usb 2.0） | *1 |
| USB 3.0 | *1 |
| 2.1 Channel | *1 |
| Front side interface | |
| TYPE C ( USB 2.0) | *1 |
| HDMI IN | *1 |
| TOUCH OUT （usb 2.0） | *1 |
| USB 3.0 | *2 |
| Touch screen Specs | |
| Touch type | Infrared touch + zero gap bonding |
| Touch point | 40 point |
| Touch height | 1mm |
| Camera | |
| Built in camera and 8 Array Mic | Optional |

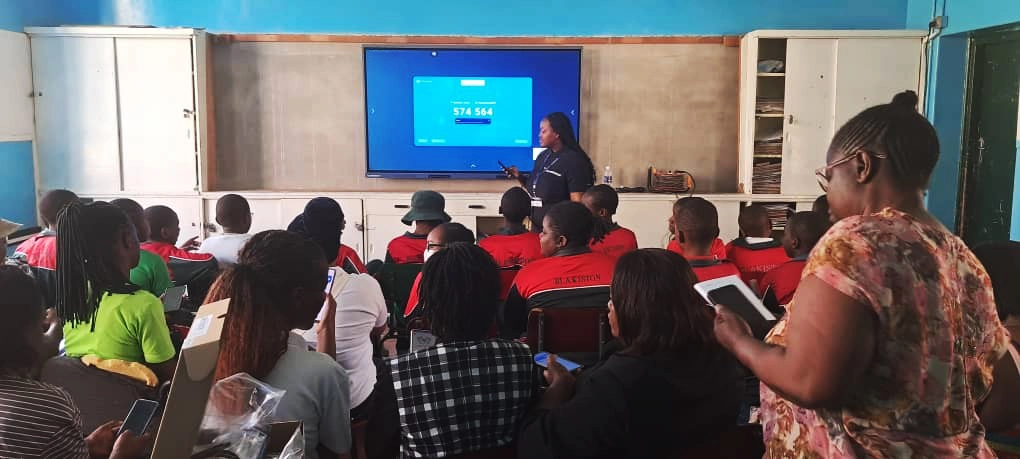

Interactive whitebaord Application Scenario
Qunmao provides one-stop commercial display engineering service. Since its establishment, qunmao has focused on providing customers with LCD splicing screen, multimedia advertising machine, touch query machine, education machine, conference tablet, terminal, etc; 5-110 inch special display products can be customized according to customer needs. It serves many projects such as public security, transportation, finance, expressway, army, border defense, customs, stock exchange, command and control center, airport, square and station, and has been recognized and praised by the industry.
V100-A Version 75inch interactive whiteboard Technical specification
| LCD brightness ajust according to environment | |
| Size | 75 inch |
| Light sensor | support |
| Power | |
| Speaker | 16W*2 |
| Standby power | ≤0.5W |
| Power supply | AC100V-240V,50-60 Hz |
| Power consuption (not include OPS） | ≤320W |
| Working environment | |
| Working tempurature | 0℃~40℃ |
| Working humidity | 20%～85%（no condensation） |
| Storage tempurature | -10℃～60℃ |
| Storage humidity | 10%～60%（no condensation） |
| Case materials | |
| Case materials | Aluminium frame + tempering glass + metal cover |
| Case color | Black |
| Size (W*D*H) | |
| Unit size (W*D*H) | 1707.1（L）*88.5（W）*1026.7（H）mm |
| Packing size (W*D*H) | 1810（L）*205（W）*1150（H）mm |
| VESA Hole | 400*600mm, 4*M8 screw |
| Weight | |
| Net Weight | 50 ±1.5 Kg |
| Gross Weight | 58.5±1.5 Kg |
| Standard accessories | |
| Remote control | *1 |
| 1.5m Power cable | *1 |
| Touch pen | *1 |
| Wall mount bracket | *1 |
| Antenna | *2 |
| Optional accessories | |
| Movable stand | Different models (Optional) |
| Smart Pen | Qty optional |
| Wireless projector | Qty optional |
| Teacher's pointer | Qty optional |
| HDMI cable | 3m/5m/10m (Optional) |
| USB cable | 3m/5m/10m (Optional) |
| Optional functions | |
| Motion Sensors | Detects someone approaching and automatically wakes up |
| NFC | Turn on/turn off |
| Lock screen/unlock screen | |
| Air quality detection | Issue prompts and early warnings when safe concentrations are exceeded |
| Touch pen bring detection | Quickly open the entrance to the whiteboard and comments |
| Fingerprint | Turn on/turn off |
| Subwoofer | 20W |

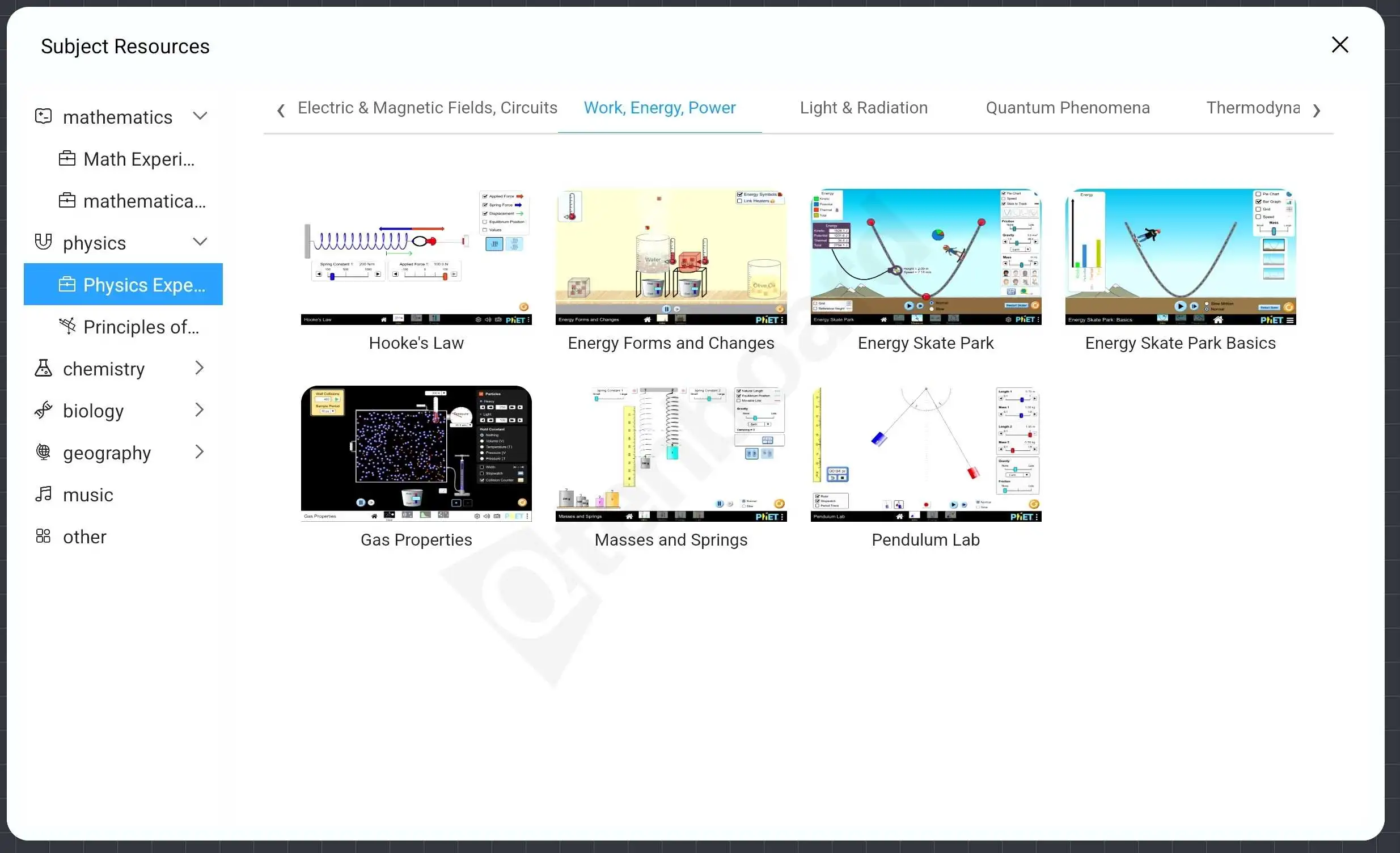

| Teaching whiteboard software | 1.0 Smartboard / 2.0 Qboard (Optional) |
| DMS | Yes/No (Optional) |

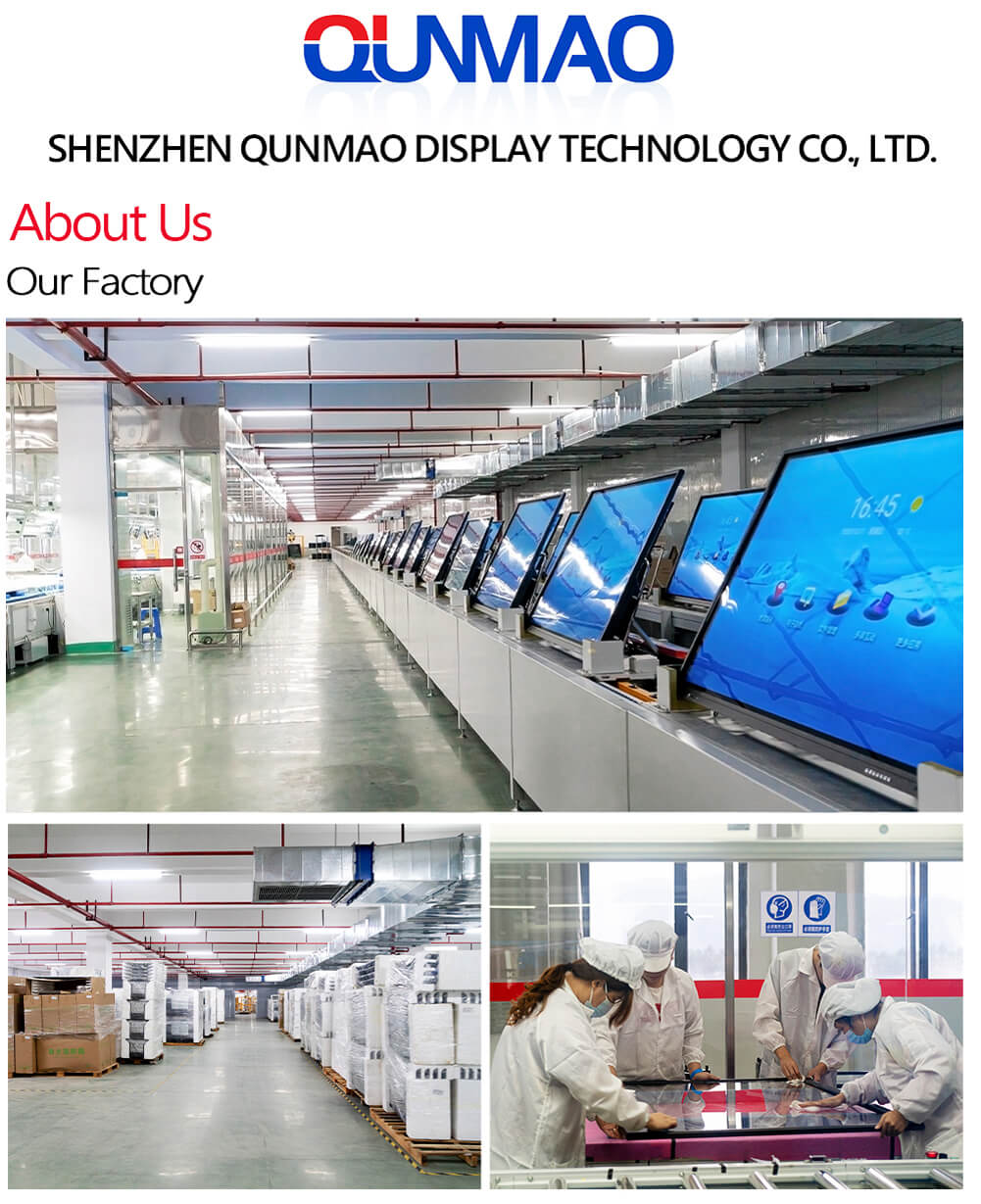

Why Choose Qunmao Display?
Qunmao Display Technology Co., Ltd. was established in 2009 with a production base in Shenzhen, covering an area of 230000 square meters. The company focuses on high-tech technology enterprises specializing in the production, sales, software development, and service of LCD and central control equipment. It is a high-tech enterprise integrating intelligence, specialization, and Internet + of domestic and foreign video products, and the overall solution of domestic and foreign leading products. Solution OEM & ODM provider. Our product more than 85% export and has been receiving high reputation from customers over 50 countries and regions, such as: India, Morocco,Russia, Indonesia,USA, South Africa, Southeast Asia,pakistan, etc.
Qunmao manufacturing factory Main prdocuts include :Interactive whiteboard,interactive flat panel,splicing screens, LCD video wall,smart advertising display, smart conference panel, educational tablets, smart blackboards, Digital signage,preschool education machines, smart terminals,queue machine,etc. A high-end technology enterprise with products, it is a master in the field of high-end displays.
Certifications & Exhibitions

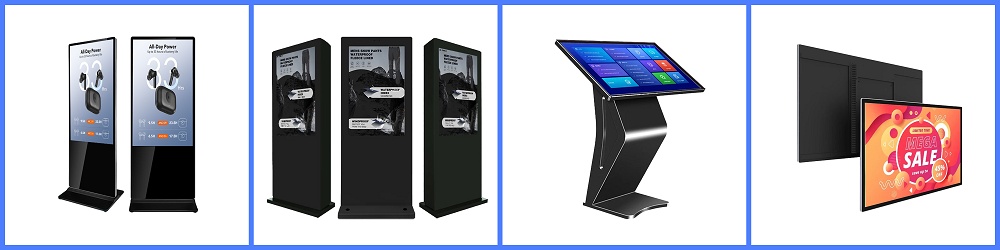

Qunmao Manufacturer Popular Products Showcase
