  • 55 inch Qunmao diversified ultra-narrow LCD splicing screen 3.5mm
    55 inch Qunmao diversified ultra-narrow LCD splicing screen 3.5mm
    55 inch Qunmao diversified ultra-narrow LCD splicing screen 3.5mm
    55 inch Qunmao diversified ultra-narrow LCD splicing screen 3.5mm
    55 inch Qunmao diversified ultra-narrow LCD splicing screen 3.5mm
    55 inch Qunmao diversified ultra-narrow LCD splicing screen 3.5mm
    55 inch Qunmao diversified ultra-narrow LCD splicing screen 3.5mm
    55 inch Qunmao diversified ultra-narrow LCD splicing screen 3.5mm
    55 inch Qunmao diversified ultra-narrow LCD splicing screen 3.5mm
    55 inch Qunmao diversified ultra-narrow LCD splicing screen 3.5mm
  • 55 inch Qunmao diversified ultra-narrow LCD splicing screen 3.5mm

    Model: QM-5502-LED

    Size description: 55-inch DID LCD splicing screen

    Bilateral seam: 3.5MM

    Backlight: LED

    Screen ratio: 16:09

    Maximum resolution: 1920×1080 (backward compatible)

    Contrast: 4500¦1

    Brightness (cd/㎡): 500cd/㎡

    Display area: 1209.8(H)×680.6(V)

    Color Saturation: 97%

    Response time (ms): 6ms

    Viewing angle: (left/right/up/down) 178°/178°178°/178°

    Service life (hrs): about 60,000 (hrs)

LCD WALL


VARIOUS SIZESSUPPORTCUSTOMIZATION


PRODUCT DETAILS

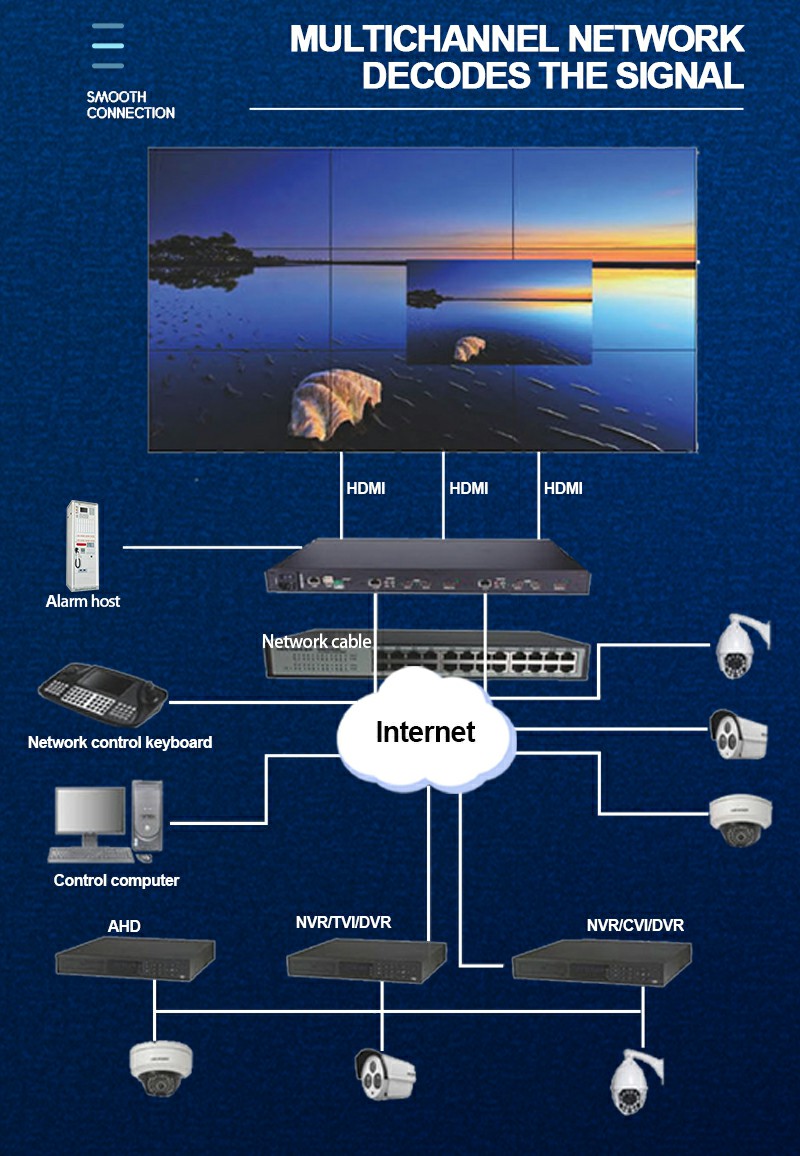

MULTICHANNEL NETWORKDECODES THE SIGNAL




OUR FACTORY



OUR COMPANY


OUR CERTIFICATE


LOGISTICS AND PACKAGING1_13.jpg

The 55-inch ultra-narrow LCD splicing screen adopts LED backlight, which has the advantages of clearer picture, higher brightness, higher contrast, longer life, good color saturation, low power consumption, energy saving and environmental protection.



  1.The KW-5502-LED product adopts DID LCD splicing screen, with 3.5 mm bilateral seams, high resolution (1920×1080), brightness (500cd/㎡), high contrast (4500:1), wide viewing angle (178 degrees) high-definition LED display panel, support 1080P full HD digital video display.


  2. Carry out research and development of hardware shell, built-in integrated modules such as power supply, driver, interface, splicing processor, scientific cooling system design, built-in temperature control module, stable and safe operation of the product.


  3. The product has the appearance of a tofu block. The back shell of the outer shell has been equipped with special screw holes for fixing, which can be fixed by twisting the screw. The installation is simple and fast, and it solves the problem of difficult installation of semi-finished products of DID LCD splicing unit.


  4. The first overall chassis design, anti-drop advanced transportation packaging; a variety of installation methods, high-grade brackets, exquisite installation cabinets can be freely matched, wall-mounted, embedded installation, etc.; installation is foolish, and it can be very convenient without professional installers Installation; stable operation and low maintenance cost;


  5. The product provides VGA, HDMI, DVI, BNC signal interfaces, and other signal interfaces can be selected as required;


  6. Adopt the first original "anti-aliasing stream processing technology", which can make low-pixel images clearly reproduced in the full HD display; de-interlacing processing technology to eliminate flicker; de-interlacing algorithm to eliminate "aliasing"; dynamic interpolation compensation, 3D Dynamic digital noise reduction, 3D comb filtering, 10-bit digital brightness and color enhancement, automatic skin color correction, 3D motion compensation, nonlinear scaling and other international leading processing technologies; image borders can be compensated or masked, and full HD signal real-time processing .


  7. It can realize the functions of manual timed cruise alarm plan setting and kaleidoscope demonstration, intelligent temperature control and alarm, automatic detection of communication faults, multi-signal split-screen display, full-screen display, and any combination display.


  8. Environmental protection and health: Kangwei LCD splicing display has low heat generation, no radiation, no flicker, no eye damage, and no harmful substances (such as lead, mercury, etc.), and is an environmentally friendly and healthy splicing curtain wall. In some developed countries in Europe and America, The LCD splicing curtain wall has replaced the traditional rear-projection splicing curtain wall and has become the mainstream.


  9. Qunmao ultra-narrow LCD video wall is widely used in: security monitoring, telecommunications, water conservancy, command centers, education, government agencies, factories and mines, stage entertainment, advertising media, stock securities, large-scale exhibitions, shopping malls, banks, offices Hall, company welcome screen, specialty store, dispatch command, etc.

画板 1.jpg画板 2.jpg画板 3.jpg
