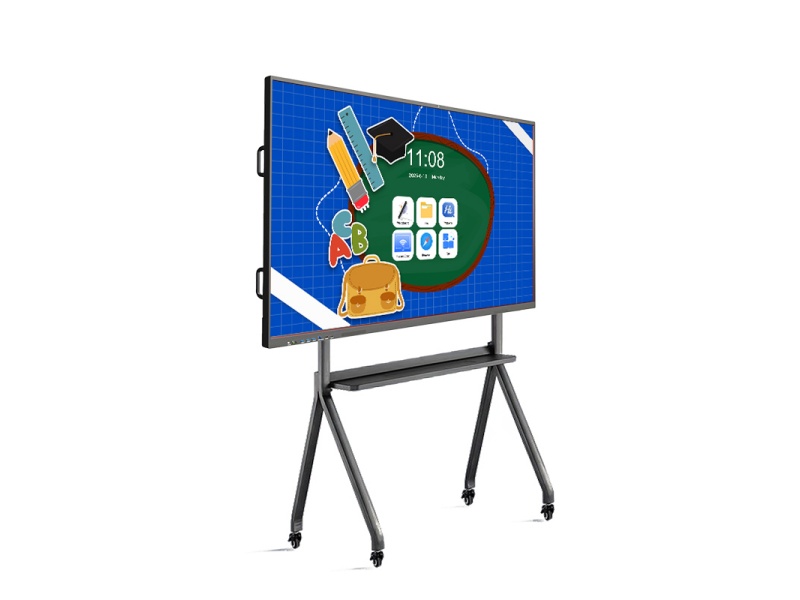

Qtenboard 105 inch 4K smart interactive whiteboard all in one interactive touch screen flat panel with projector for classroom
>>> Our Factory Video <<<
Shenzhen Qunmao company is one of Chinese factories specializing in producing the commercial dispaly screens. Qunmao has two own brand till now, one is QUNMAO, another is Qtenboard.
Qunmao factory wholesale intelligent interactive flat panel, Smart interactive flat panel integrated projector, whiteboard, TV, audio, 4K ultra-hd definition resolution, anti-glare, wireless casting, remote video, powerful, multi-touch control, smooth writing, rich resources, enhance the teaching effect, a key to cast the screen, so that the interactive teaching Efficient and convenient, factory direct, dual system, Various sizes, widely used in the company meeting & school teaching and other fields, support customised services, School teaching and other fields, support customised service, welcome to contact us!
Smart interactive Flat Panel
Screen size:65/75/85/86/98/100/105/110 inch
Function summary and product advantage
1. LCD panel is for BOE brand and A+ grade panel
2. with Anti-glare glass on surface + zero gap bonding process
3. with split screen function + Wireless screen transmission, multi-screen interaction, Wireless projection and others functions
4. with light sensor, can adjust lcd screen brightness according to the environment, to fit different place use and protect eyes, and also can save power.
3588 Version 105 inch Smart Interactive Flat Panel Description
| LCD Specifications | |
| LCD size | 105" |
| Resolution | 3840*2160 4K / 5120X2880 5K (Optional) |
| Brightness | 500cd/m² (typ.) |
| Contrast Ratio | 4000:1 (typ.) |
| Aspect Ratio | 21: 9 |
| Color Depth | 16.7M(8bit) |
| Response time | 6ms (typ.) |
| Viewing area | 2449.5mm(H)×1033.5mm(V) |
| Visual Angle | 178°(H) / 178°(V) |
| LCD life | 60,000 hrs (typ.) |
| Android Specifications | |
| CPU | Rockchip RK3588, A76*4+A55*4 @ 2.4GHz |
| GPU | ARM Mali-G610 MC4 |
| Android OS | Android 13.0 |
| RAM+ROM | 8+64G/8+128G/16+128G/16+256G (Optional) |
| WIFI | 2.4g&5g a/b/g/n +ac |
| Bluetooth | 5.0 |
| RJ45 | 1000M |
| Video format | MPEG2-4,H.264,H.265, TS and ect |
| Picture format | JPG, JPEG, BMP, PNG and ect |
| Child lock | support |
| Wireless projection | support |
| Remarks function | support all channel remarks |
| OSD language | English/French/Spanish/Russian and ect |
| Interface (standard specs interface) | |
| HDMI OUT | *1 |
| HDMI IN | *3 |
| RJ45 IN | *1 |
| RJ45 OUT | *1 |
| (Mini) LINE OUT | *1 |
| RS232 | *1 |
| USB 2.0 | *1 |
| VGA | *1 |
| TOUCH OUT （USB 3.0） | *2 |
| USB 3.0 | *2 |
| USB Type-C | *2 |
| PC AUDIO IN | *1 |
| OPTIONAL OUT | *1 |
| Front side interface | |
| TYPE C ( USB 2.0) | *1 |
| HDMI IN | *1 |
| TOUCH OUT （usb 2.0） | *1 |
| USB 3.0 | *2 |
| Touch screen Specs | |
| Touch type | Infrared touch + zero gap bonding |
| Touch point | 20 point |
| Touch height | 1mm |
3588 Version 105 inch Smart Interactive Flat Panel
| LCD brightness ajust according to environment | |
| Light sensor | support |
| Power | |
| Speaker | 16W*2 |
| Standby power | ≤0.5W |
| Power supply | AC100V-240V,50-60 Hz |
| Power consuption (not include OPS） | ≤200W |
| Working environment | |
| Working tempurature | 0℃~40℃ |
| Working humidity | 20%～85%（no condensation） |
| Storage tempurature | -10℃～60℃ |
| Storage humidity | 10%～60%（no condensation） |
| Case materials | |
| Case materials | Aluminium frame + tempering glass + metal cover |
| Case color | Black |
| Size (W*D*H) | |
| Unit size (W*D*H) | 2513.5（L）*108.8（W）*1133.4（H）mm |
| Packing size (W*D*H) | 2690（L）*275（W）*1340（H）mm |
| VESA Hole | 363*1600(800*2)mm, 4*M8 screw |
| Weight | |
| Net Weight | 100 ±1.5 Kg |
| Gross Weight | 125±1.5 Kg |
| Standard accessories | |
| Remote control | *1 |
| 1.5m Power cable | *1 |
| Touch pen | *1 |
| Wall mount bracket | *1 |
| Antenna | *2 |
| Optional accessories | |
| Movable stand | Different models (Optional) |
| Smart Pen | Qty optional |
| Wireless projector | Qty optional |
| Teacher's pointer | Qty optional |
| HDMI cable | 3m/5m/10m (Optional) |
| USB cable | 3m/5m/10m (Optional) |
| Camera | External optional |
| Optional functions | |
| Motion Sensors | Detects someone approaching and automatically wakes up |
| NFC | Turn on/turn off |
| Lock screen/unlock screen | |
| Air quality detection | Issue prompts and early warnings when safe concentrations are exceeded |
| Touch pen bring detection | Quickly open the entrance to the whiteboard and comments |
| Fingerprint | Turn on/turn off |
| Subwoofer | 20W |
| Teaching whiteboard software | 1.0 Smartboard / 2.0 Qboard (Optional) |
| DMS | Yes/No (Optional) |
Why Choose Qunmao Display?
Qunmao Display Technology Co., Ltd. was established in 2009 with a production base in Shenzhen, covering an area of 230000 square meters. The company focuses on high-tech technology enterprises specializing in the production, sales, software development, and service of LCD and central control equipment. It is a high-tech enterprise integrating intelligence, specialization, and Internet + of domestic and foreign video products, and the overall solution of domestic and foreign leading products. Solution OEM & ODM provider. Our product more than 85% export and has been receiving high reputation from customers over 50 countries and regions, such as: India, Morocco,Russia, Indonesia,USA, South Africa, Southeast Asia,pakistan, etc.
Qunmao manufacturing factory Main prdocuts include :Interactive whiteboard,interactive flat panel,splicing screens, LCD video wall,smart advertising display, smart conference panel, educational tablets, smart blackboards, Digital signage,preschool education machines, smart terminals,queue machine,etc. A high-end technology enterprise with products, it is a master in the field of high-end displays.
Certifications & Exhibitions
Our Services and Advantages
1. Extensive sales and manufacturing experience
2. High-tech and efficient equipment
3. Customisation, OEM and ODM Services are acceptable
4. Strictly adheres to ISO9001 standards
5. Extensive after-sales service
6. Competitive factory price and superior quality
7. All materials meet the standards
8. Exceptional customer focus and knowledge
9. Owning a production factory with a complete supply chain
10. Quick email response within 12 hours.
Packaging And Shipping
FAQ
Q: can you provide OEM/ODM services?
A: Yes, it has received good support. We can customize it according to your requirements.
Q: do you have any stock?
A: We have 3000-5000 units in stock every month.
Q: is your company a real manufacturer?
A:Our company is a professional manufacturer in Shenzhen city. You are welcome to visit our factory at any time.
Q: how about the quality of the product?
A: our products have been strictly tested by QC before being delivered to customers. We sell our brand online in China's domestic market, so quality is our first priority!
Q: What is your delivery time??
A:Our factory has an inventory of raw materials and has 10 Automated production lines. Sample orders can be shipped out at any time, and bulk orders are delivered in about one to two week.
Q: What brand of screen are you using?
A: LG,BOE,AUO,TCL, Samsung, CHIMEIpanels would be used, depending on the projects. And we can guarantee that we use all original A+ screens from original brands.
Q: How does your factory do regarding quality control?
A: Quality is priority. Qunmao always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail, our products accept CE,RoHS,FCC authentication,etc.
Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is calculated according to Specs/Size/Quantity of each of your order, it is negotiable for large quantity.
Q: how can I trust the quality of your products?
A: We have been engaged in the business display industry for more than ten years, have independent product R & D institutions, have strong independent R & D ability of new products, and have passed a series of domestic and international quality management system certification, 3C certification, energy saving certificate, test report, national high-tech enterprise certificate, CNAs quality certification, CE certificate, FCC certificate, ROHS certificate, biso9001 certification, ISO environmental management The product implementation standard certificate is also the designated brand in the domestic government procurement list. The market share has doubled for several consecutive years. The company has a number of invention patents, utility model patents, design patents, intellectual property rights, copyrights, etc.
Q: what is your after-sales service?
A: If you have any questions, you will get our reply within 24 hours. And provide solutions immediately.
Can we help you?
7*24 hours online service.
Your inquiry related to our products or prices will be replied in 24 hours.
If you want to know more about our products or customize products, please Contact us or Send inquiry.
